Motion Sensor PIR Light Switch - 2 Wire
Loading …
86mm x 86mm x 30mm
See product for Replacement Batteries, Accessories, Boxes and Grommets
Timeguard
Motion Sensor PIR Light Switch - 2 Wire
Motion Sensor PIR Light Switch - 2 Wire
Style and functionality with Timeguard's range of energy-saving, programmable and motion sensor light switches.
- Operating voltage: 230V AC, 50Hz
- Battery: 9V DC battery supplied (replaceable)
- Earth class rating: Class II
- IP rating: IP20
- 2-wire connection - no neutral required
- Fits a standard flush or surface mount wall box, min. 25mm depth
- Switch type: single or two way
- Detection angle: 170°
- Motion detection range: 8m front, 4m side
-
Switch rating:
400W LED
2000W Incandescent/Halogen
250W Low energy (CFL)
250W Fluorescent - Permanent ON facility (slider switch)
- Multiple unit support
- ON time adjustment: 10 seconds to 15 minutes
- LUX level: 1 to 10
- Concealed front panel with retaining screw
86mm x 86mm x 30mm
| See product for Replacement Batteries, Accessories, Boxes and Grommets |
Technical:SMZV810N Datasheet - 350kb pdf Instructions - 2.63mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Securiswitch
Loading …
Dimensions:
Height: 122mm.
Width: 86mm.
Depth: 22mm.
Closed
Dimensions:
Height: 86mm.
Width: 86mm.
Depth: 22mm.
See product for Accessories, Boxes and Grommets
Timeguard

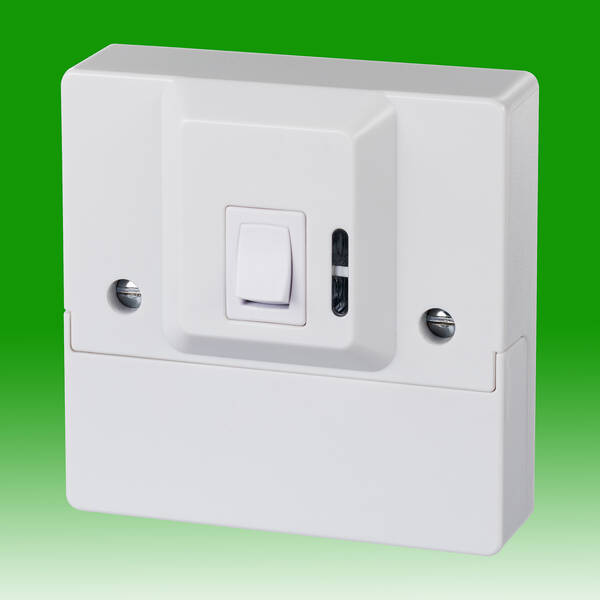

1 Gang Securiswitch
1 Gang Securiswitch
Programmable to turn lights off at pre-set times between 1 to 8 hrs.
Replaces existing light switch.
Concealed setting dial, LED.
Light sensor prevents operation during daylight hrs.
- Turns room lights on & off automatically.
- Light ON time programmable for up to 8 hours approximately.
- Adjustable light level control for dusk switching to compensate for differing light levels within a building.
- Note: Cannot be used with dimmer switches in two way switching systems or replace an intermediate switch in three or more way switching systems.
- Switch Type: Single on Single Gang plate
- Tungsten/Halogen Lamps: 40W Min up to Max 2000W
- LED Lamps Max 400W
- Light Level Sensing: Yes
- Light on Time Adjustable: Yes
- Concealed Front Panel: Yes
- Fluorescent & Low Energy Lighting: 250W
- Conforms To Directives: 73/23/EEC; 89/336/EEC.
Dimensions:
Height: 122mm.
Width: 86mm.
Depth: 22mm.
Closed
Dimensions:
Height: 86mm.
Width: 86mm.
Depth: 22mm.
| See product for Accessories, Boxes and Grommets |
Technical:Instructions SMZV210N_Datasheet 1.4Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

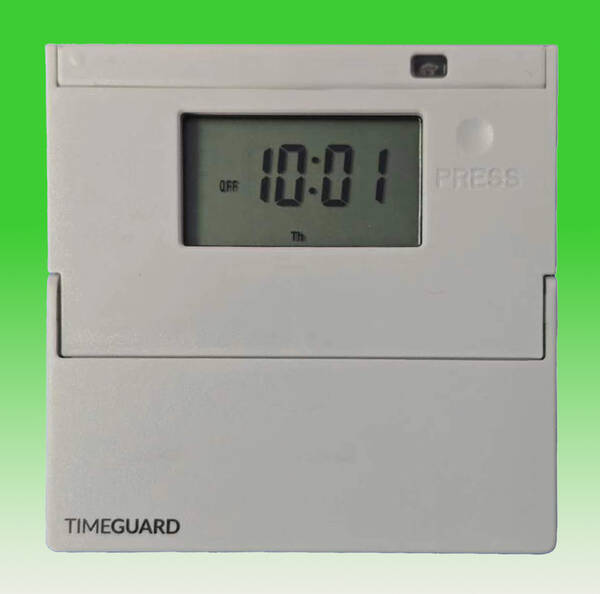

7 Day Digital Security Light Switch with Optional Dusk Start
Loading …
85mm x 85mm x 27mm
See product for Accessories, Boxes and Grommets
7 Day Digital Security Light Switch
with Optional Dusk Start
with Optional Dusk Start
The ZV700N combines the function of a manual light switch with the option of automatic timed control of lighting on a weekly basis, available at the press of a button. There is a further option of starting an automatic lighting period at dusk, but ending it with a timed off, and a random on/off option, based around programmed times.
Designed for 2-wire systems with minimum load restrictions.
Programme modes:
24 Hour, 7 Day, Permanent ON/OFF,
Photocell, Random or Timed
Designed for 2-wire systems with minimum load restrictions.
Programme modes:
24 Hour, 7 Day, Permanent ON/OFF,
Photocell, Random or Timed
- 6 different time periods (5 day plus 2 day or 7 day programming) displayed on an easy-view blue illuminated screen
- Operating voltage: 230V AC, 50Hz
- Earth class rating: Class II
- IP rating: IP20
- 2-wire connection - no neutral required
- Fits a standard flush or surface mount wall box, min. 25mm depth
- Programmable slots: 6 ON, 6 OFF
-
Switch rating:
0-50W LED
40-400W Filament
11-150W Low energy (CFL)
18-76W Fluorescent - Permanent ON facility
- Automatic summer/winter time changeover
- Internal battery powers the switches controls, therefore the lamps will not flicker when a minimum load is connected
85mm x 85mm x 27mm
| See product for Accessories, Boxes and Grommets |
Technical:SMZV700N Datasheet - 270kb pdf Instructions - 5.73mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
