4 Inch In line Duct Extractor Fan with Timer up to 187 m3/hr c/w LED Light50190093070779041408

Loading …

Airflow - Aventa

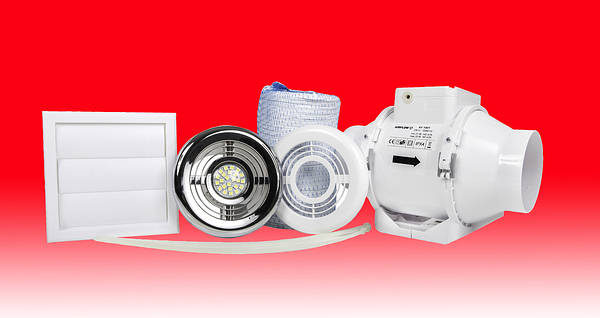

4 Inch Shower Fan Kit c/w LED Lamp & Timer
Aventa In-Line 100T is a mixed flow fan (with LED lamp). Quiet and powerful, high performance up to 187 m3/hr.
Two speed operation with basic and timer models. Ductable up to 6m and supplied with a mounting bracket. Aventa 100mm in-line mixed flow fans are available in high-performance two speed versions.

They are less bulky than large in-line centrifugal fans and can be installed in loft spaces or service shafts.

This range is specially designed for residential applications requiring remote extraction. It is also supplied with a mounting bracket for quick and easy installation on wooden joists and panels.

The inlet/outlets are compatible with flexible and rigid pipe runs up to 3m either side of the fan (6m).

The units operate manually from an (optional) three position switch (off/low/high) or with adjustable timer version (1 to 20 minutes)

Application:
Aventa 100mm in-line mixed flow fans (with LED lamp) are suitable for removing damp moist air, odours and airborne pollutants from toilets, bathrooms, en-suites and shower rooms without windows or natural ventilation.
  • Designed for longer duct runs
  • High pressure low noise
  • Compact and quiet in operation
  • Two speed (normal and boost)
  • Access to motor and impeller without dismantling ductwork
  • White and Chrome Internal Grilles
  • White External Grille
  • 12v DC, Cool White, LED Lamp
  • CE, IPX4 rating and double insulated
  • Supply or extract air
  • Complies with Building Regulations
  • Adjustable timer 2 - 30 minutes
  • c/w 6Mtr Flexible Ducting
  • LED lamp 4 watts (220 Lumens).
  • 3 Year warranty

Technical:

Dimensions / Data Sheets Installation pdf

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
AD AV100TLED

4 Inch In line Duct Extractor Fan with Timer up to 187 m3/hr c/w LED Light New
