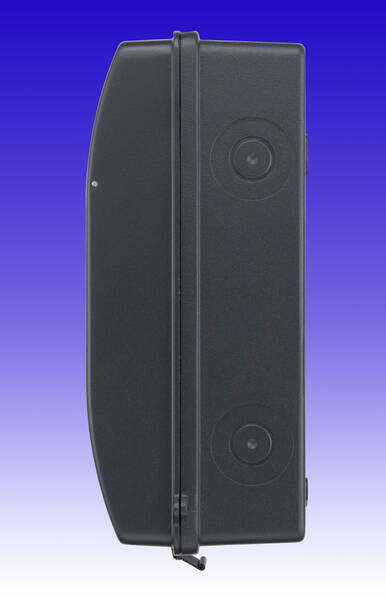

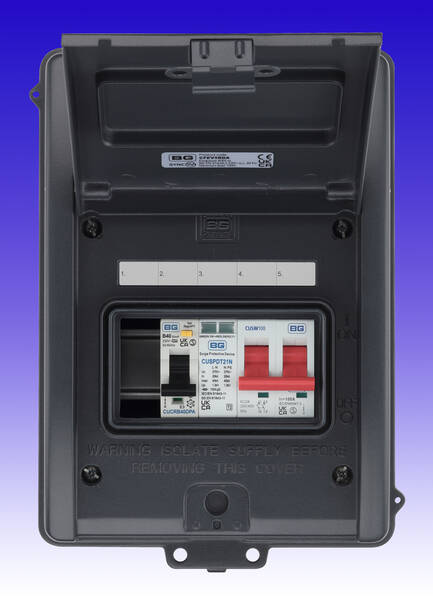

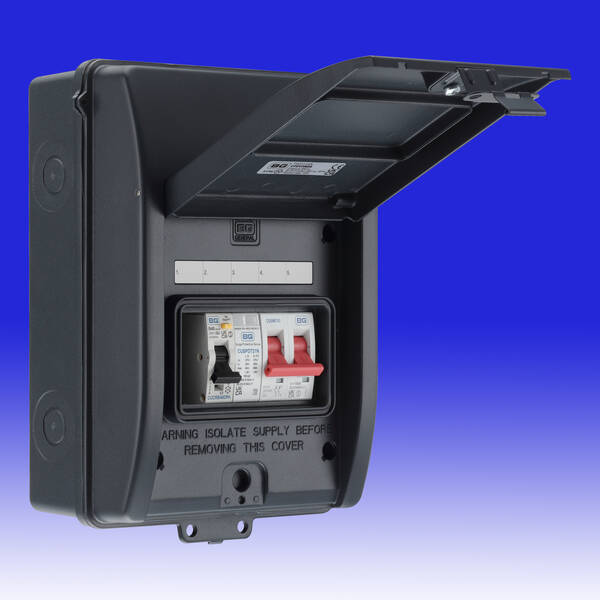

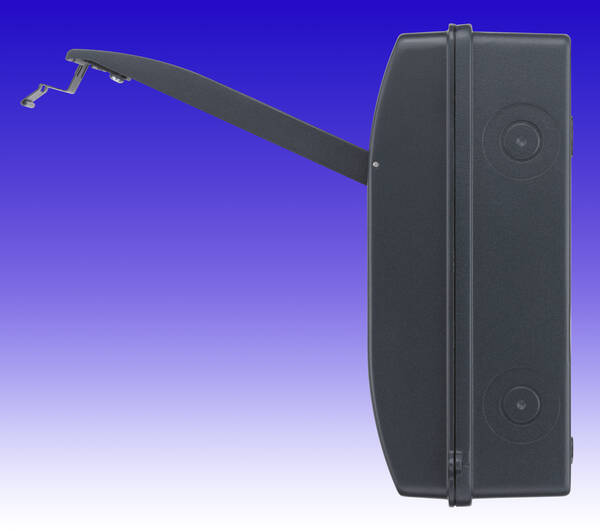

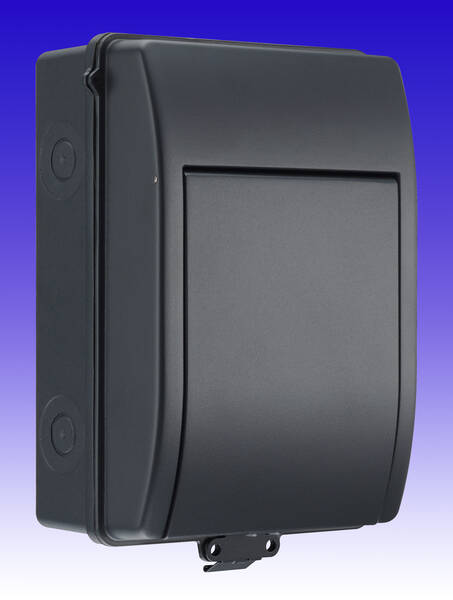

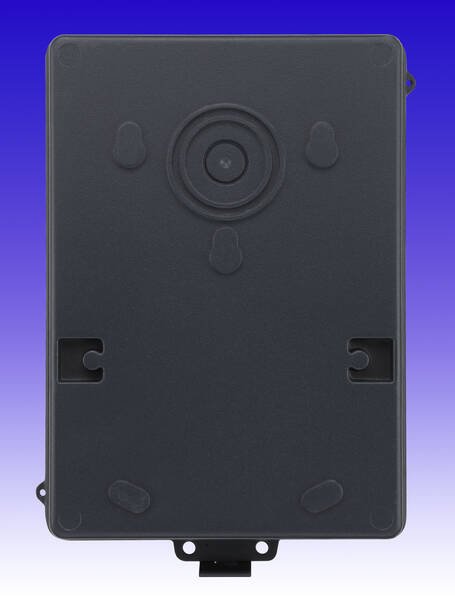

EV Consumer Unit 100A Switch + 40A DP RCBO (Type A) + SPD- IP65 -Anthracite
Product Code: BG CFEV5RDA
5050765249485
CFEV5RDA-01
Loading …
Height: 233mm
Width: 176mm
Depth: 100mm
EV Consumer Unit
100A Main Switch + 40A DP RCBO (Type A) + SPD
IP65 - Anthracite
100A Main Switch + 40A DP RCBO (Type A) + SPD
IP65 - Anthracite
Designed specifically for use with EV chargers to allow for external
wiring applications.
18th Edition Amendment 2 compliant.

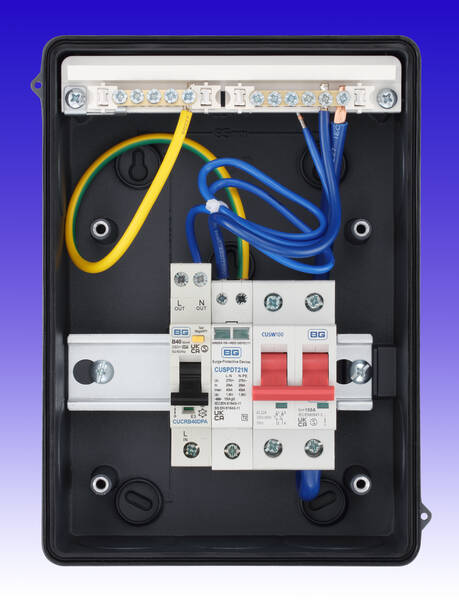

Populated with:
1 x 40A 30mA Type A RCBO Double Pole
1 x 100A Main Switch
1 x Type 2 SPD
wiring applications.
18th Edition Amendment 2 compliant.
Populated with:
1 x 40A 30mA Type A RCBO Double Pole
1 x 100A Main Switch
1 x Type 2 SPD
- 5 Module / 5 Ways
- IP65 rated, UV stable
- Compliant with 18th Edition Amendment 2 BS7671
- Construction: 2mm cast aluminium - ADC12
- Colour: RAL 7016 Anthracite Grey
- Padlock facility built into front cover
- Enclosure can be wire sealed using built-in hole tabs
- Cutouts & knockouts: M20, drillable to M32.
Top & bottom x3, Sides x2, Base x1
Height: 233mm
Width: 176mm
Depth: 100mm
Technical:Datasheet - 2mb pdf |
|
