EV Consumer Unit 40A DP BD RCBO (Type A) + SPD - IP66
Product Code: BG CP5RDPS3G
CP5RDPS3G-01
Loading …
Height: 218mm
Width: 166mm
Depth: 115mm
EV Consumer Unit
40A DP BD RCBO (Type A) + SPD
IP66 - Anthracite
40A DP BD RCBO (Type A) + SPD
IP66 - Anthracite

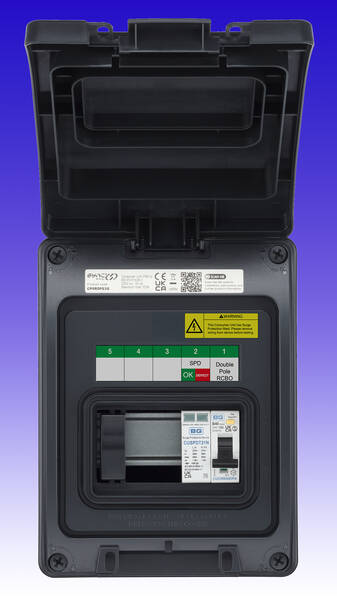

The EV consumer unit is an IP66-rated, exterior-use plastic enclosure. It provides a cost-effective alternative to metal units and is specifically designed for outdoor electric vehicle (EV) installations.

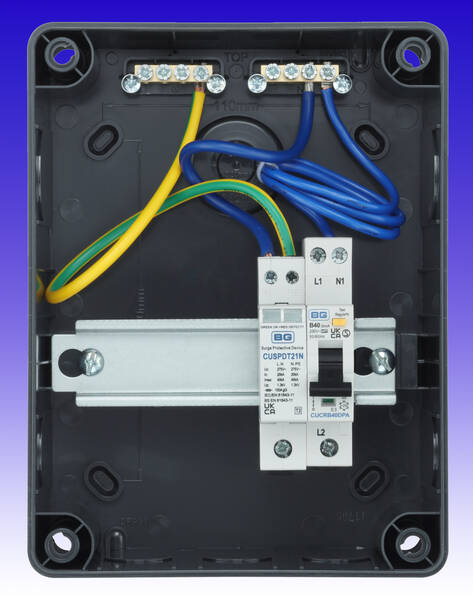

Supplied complete with:
1 x 40A 30mA Double Pole Bi-directional RCBO Type A
1 x Type 2 SPD
All internal cables, terminals, busbar and blanks
Designed with backed-out and retained terminal screws for easy installation, along with multiple drill-out cable entry points - two on each side, one on the rear, and three at the bottom. It also carries a Pollution Degree 3 certification for the installed devices, making it reliable in challenging conditions.
Supplied complete with:
1 x 40A 30mA Double Pole Bi-directional RCBO Type A
1 x Type 2 SPD
All internal cables, terminals, busbar and blanks
Designed with backed-out and retained terminal screws for easy installation, along with multiple drill-out cable entry points - two on each side, one on the rear, and three at the bottom. It also carries a Pollution Degree 3 certification for the installed devices, making it reliable in challenging conditions.
- Incomer: 40A 30mA Double Pole Bi-directional RCBO Type A
- 5 module / 5 ways
- IP66 rated / IK07 impact rating
- 18th Edition BS7671 Amendment 2&3 compliant
- Polycarbonate housing, UV stable
- Anthracite grey, RAL 7016
- Lockable cover
- 1 x 18mm cover blank supplied (removable)
- Knockouts (drillable):
Each side - 1 x 20-25mm & 1 x 20-40mm
Bottom - 3 x 20-25mm
Rear - 1 x 20-32mm - 10 year warranty
Height: 218mm
Width: 166mm
Depth: 115mm
Technical:Instructions - 610kb pdf BGCP5RDPS3G Datasheet - 765kb pdf |
|
