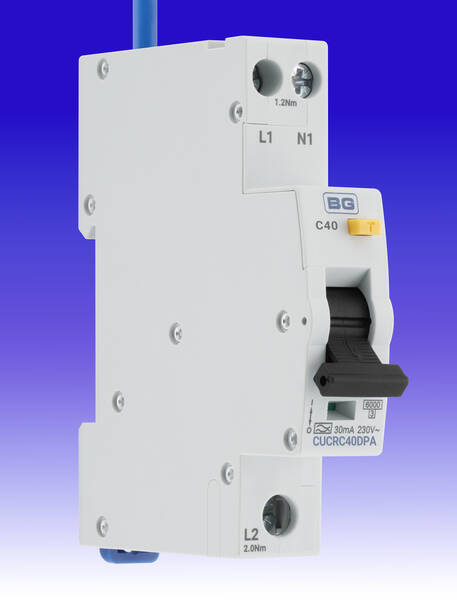

40A 30mA RCBO - BG (Type A) C Curve Bi-directional (Compact)
Product Code: BG CRC40DPA
5050765256193
CUCRC40DPA-02
Loading …
BG
40 Amp 30mA RCBO - Type A
C Curve - Bi-directional
40 Amp 30mA RCBO - Type A
C Curve - Bi-directional
The BG range of C curve Type A 30mA Compact Double Pole RCBO devices offer superior protection against short circuit, overload and earth leakage faults with a 6kA breaking capacity, 5-10 times the full load tripping current and can be fitted into any BG range of consumer unit or enclosure.
Being the same size as an MCB, they offer additional wiring space within the consumer unit, ideal where isolation of both Live and Neutral poles is required such as PV and EV application and offer protection against short circuit, overload and earth leakage in both flow directions.
Being the same size as an MCB, they offer additional wiring space within the consumer unit, ideal where isolation of both Live and Neutral poles is required such as PV and EV application and offer protection against short circuit, overload and earth leakage in both flow directions.
- Type A
- Double Pole
- Bi-directional
- C curve
- 6kA breaking capacity
- Positive contact status indication
- Single module, compact size
- DIN rail mountable
- Integrated blue Neutral lead
- Manual test button
- Device capable of being locked in 'ON' or 'OFF' position using a device lock
Technical:Datasheet - 450kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG CRC40DPA
40A 30mA RCBO - BG (Type A) C Curve Bi-directional (Compact) |
