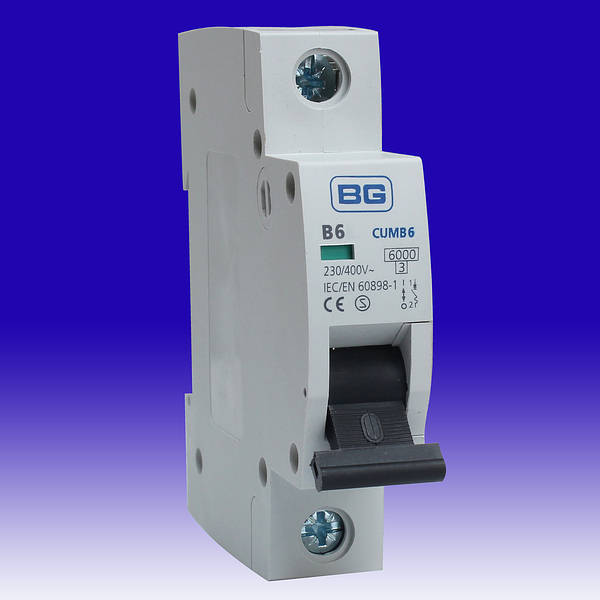

BG MCB's - B Type
Loading …
See product for Alternative Product
BG
MCB's - B Type
MCB's - B Type
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

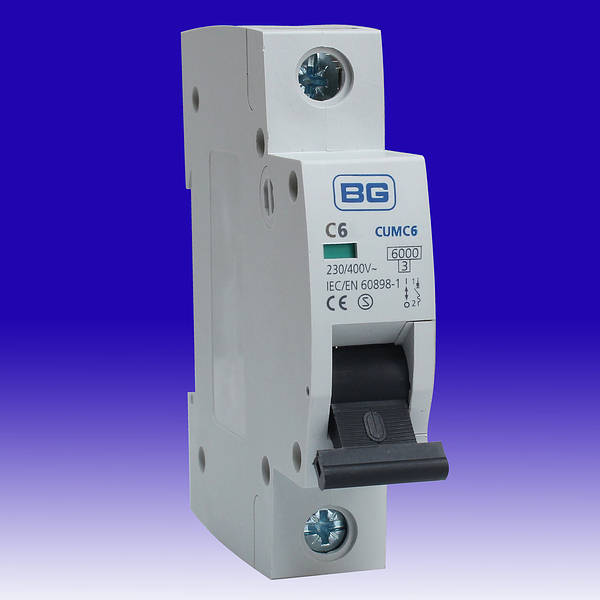

BG MCB's - C Type
Loading …
See product for Alternative Product
BG
MCB's - C Type
MCB's - C Type
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type A - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG
30mA RCBO - Type A
B Curve (New Compact)
30mA RCBO - Type A
B Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
10A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
16A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
20A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
32A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
40A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|

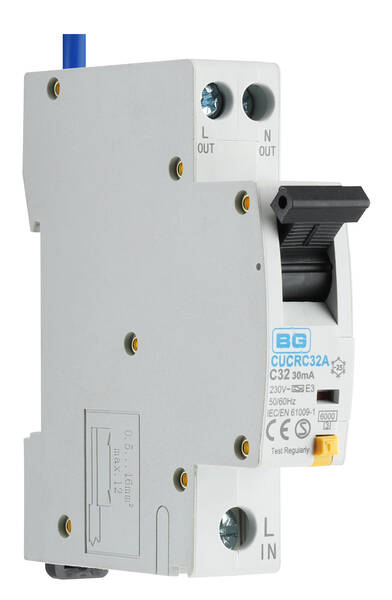

BG 30mA RCBO - BG - Type A - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG
30mA RCBO - Type A
C Curve (New Compact)
30mA RCBO - Type A
C Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

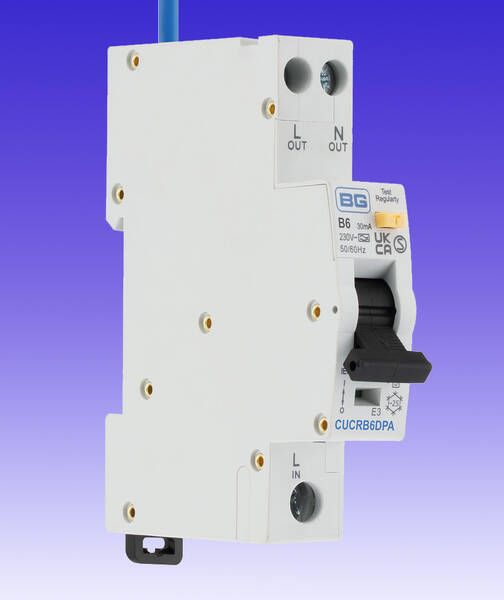

BG 30mA RCBO - Type A - B Curve (Compact) - Bi-directional
Loading …
BG
30mA RCBO - Type A
B Curve - Bi-directional
30mA RCBO - Type A
B Curve - Bi-directional
The BG range of B curve Type A 30mA Compact Double Pole RCBO devices offer superior protection against short circuit, overload and earth leakage faults with a 6kA breaking capacity, 5-10 times the full load tripping current and can be fitted into any BG range of consumer unit or enclosure.
Being the same size as an MCB, they offer additional wiring space within the consumer unit, ideal where isolation of both Live and Neutral poles is required such as PV and EV application and offer protection against short circuit, overload and earth leakage in both flow directions.
Being the same size as an MCB, they offer additional wiring space within the consumer unit, ideal where isolation of both Live and Neutral poles is required such as PV and EV application and offer protection against short circuit, overload and earth leakage in both flow directions.
- Type A
- Double Pole
- Bi-directional
- B curve
- 6kA breaking capacity
- Positive contact status indication
- Single module, compact size
- DIN rail mountable
- Integrated blue Neutral lead
- Manual test button
- Device capable of being locked in 'ON' or 'OFF' position using a device lock
Technical:Datasheet - 450kb pdf Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - Bell Transformer 240V AC to 8V 12V & 24V AC
Loading …
BG CUB1
Height: 80mm
Width: 68mm
Depth: 35mm
BG
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer for use with metal or insulated consumer units & enclosures - DIN rail mountable.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Height: 80mm
Width: 68mm
Depth: 35mm
Technical:CUB1-01 Specification pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG Type 2 Single Phase Surge Protection Device ( SPD )
Loading …
BG SPDT21N
BG
Type 2
Single Phase Surge Protection Device ( SPD )
Type 2
Single Phase Surge Protection Device ( SPD )
This Type 2 Surge Protection Device provides superior protection against Transient overvoltages, by diverting the surge to earth within <25ns, and protecting all loads/circuits connected to the consumer unit.
The compact size and single module width make it compatible for all Fortress Consumer units and Enclosures.
The compact size and single module width make it compatible for all Fortress Consumer units and Enclosures.
- Type 2 Single Phase Surge Arrester
- Fully compliant to BSEN61643-11, BSEN62305 & BS7671
- Suitable for domestic installations
- Space saving 1 module design
- Can be fitted on DIN rail directly into the consumer unit
- 40kA
- Max. back up fuse 100A gG
- Positive status contact indicator
- Response time <25ns
- BGSPDT21N does not require an MCB - protection is built in
Technical:BGSPDT21N Datasheet - 110kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

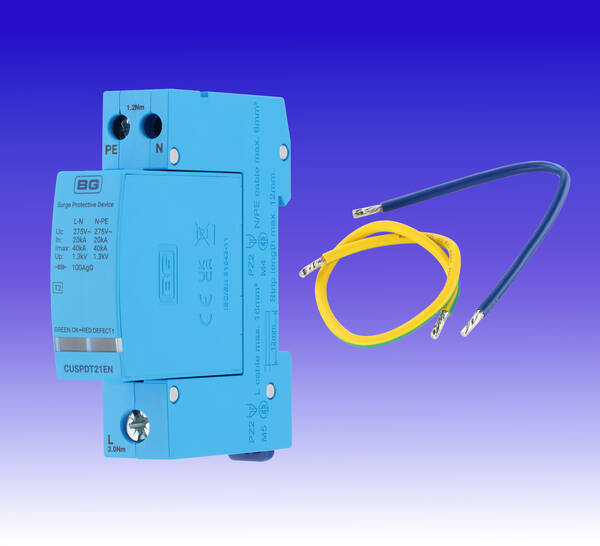

BG Type 2 SPD (Surge Protection Device) Kit c/w Neutral & Earth Wires
Loading …
BG CUA30
BG
Type 2 SPD (Surge Protection Device) Kit
c/w Neutral & Earth Wires
Type 2 SPD (Surge Protection Device) Kit
c/w Neutral & Earth Wires
This Type 2 Surge Protection Wiring Kit provides superior protection against transient overvoltages by diverting the surge to earth within <25ns, and protecting all loads/circuits connected to the consumer unit.
The kit comes complete with a Type 2 SPD (Surge Protection Device), Neutral & Earth wires.
No longer requires an MCB - protection is built in
The kit comes complete with a Type 2 SPD (Surge Protection Device), Neutral & Earth wires.
No longer requires an MCB - protection is built in
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

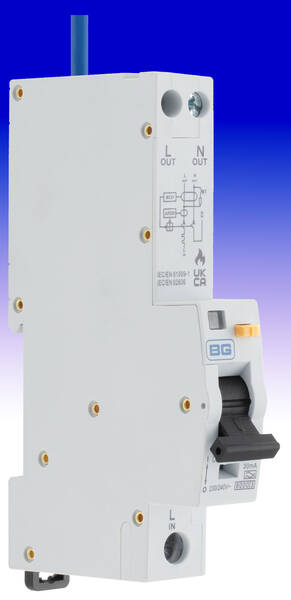

BG - DP AFDD Type A - 6KA
Loading …
BG AFDB6A
BG
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
AFDD + RCBO combined:
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
