LH Under Laminate Heating Element 8.5m x 1m - 1.10kW (Discontinued)

Please try Laminate Under Floor Heating for alternative products.

LH Under Laminate Heating Element 8.5m x 1m - 1.10kW0LH10-085

Loading …

Heating Elements - 10 year warranty subject to installation and registration

Controls carry a 1 year manufacturers warranty’
LH Under Laminate Heating Element 8.5m x 1m - 1.10kW

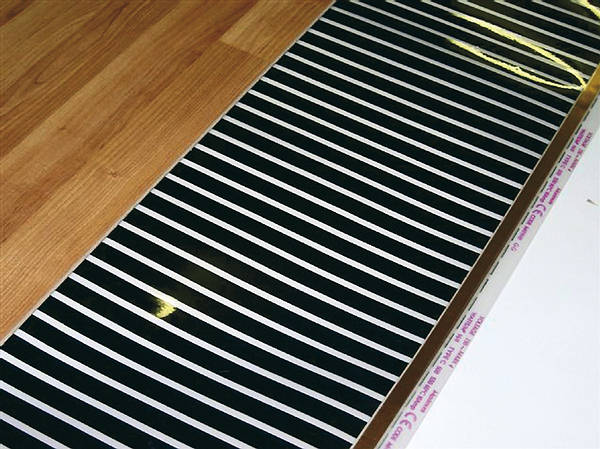

Ultra-thin LH heating elements can be installed directly under laminate floors
without the need for screed or adhesive.

They can also be used with timber floors with a maximum thickness of 15mm*.

A layer of Depron insulation placed below the LH
element will provide the necessary thermal insulation and sound deadening.

In poorly insulated properties supplementary heating may be required.

*We recommend you consult your timber floor supplier to check compatibility with
underfloor heating.
  • Features
    Two different widths are available with standard lengths up to 10m (elements can be reduced in length on site if necessary)
  • 4m ‘live’ and ‘neutral’ cables are fitted
  • A number of elements are used to fill the floor area and are connected in parallel.
  • Use with U16C programmable thermostat with both room and floor sensor (must be ordered separately)
  • Selection
    Draw a plan of the floor identifying areas occupied by fixed furniture such as kitchen cabinets (heating elements should not be installed in these areas).
  • Draw the heating elements side by side on to the plan leaving a minimum gap of 50mm between the wall and the edge of the heating element.
  • Whenever possible, keep the element ends fitted with the live and neutral cables along one wall.
  • This should be the same wall on which the thermostat is mounted.
Stock held by BN Thermic: - Delivery 2 - 4 Working days


Installation and Selection Product Info Programmer Instructions - 262kb pdf
Product Code
Price (ex VAT)
Price (inc VAT)
product photo
BN LH10085

LH Under Laminate Heating Element 8.5m x 1m - 1.10kW
