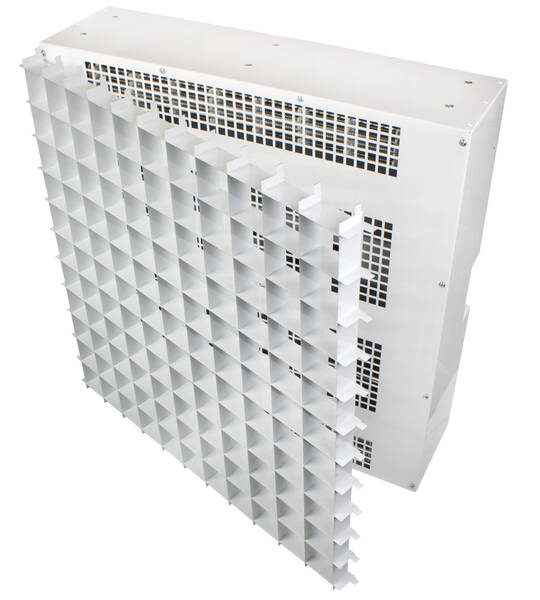

6kW Suspended Ceiling Fan Heater
Product Code: BN SCHG60
5060002020043
SCHG-60
Loading …
Width: 576mm
Depth: 592mm
Height: 153mm
BN Thermic
6kW Suspended Ceiling Heater
6kW Suspended Ceiling Heater
Designed to rest in the T bar of a 600 x 600 ceiling system.
It can either be fitted above a metal egg crate diffuser or with the epoxy powder coated front cover exposed.
For use as an over door heater the front panel can be cut down to fit the
reduced size tile often found on the ceiling perimeter.
Ideal for heating shops and offices because the heaters do not occupy valuable wall and floor space.
- White Aluminium 50mm x 50mm EGG crate diffuser (SCH-ECD) included as standard.
- Powerful 6kW, 4.5kW and 3kW models available.
- Sized to fit standard suspended ceiling systems.
- Minimum height and unique taper shape for ease of fitting.
- Plastic coated front cover in neutral grey for inconspicuous installation.
- M4 eye bolts for suspension
- IP22, Class 1
- Length of front cover can be reduced to fit non standard tiles.
- Safety cut-out.
- Can be wired with fan only switch for summer use.
- Tangential fan with low noise aluminium fan blades
- Shaded pole high performance motor
- Factory lubricated bearings (servicing not required)
- Rubber fittings for low noise operation.
- 6kW heaters have a built-in relay meaning that the minimum switching capacity of a suitable thermostat is reduced to 10A
Width: 576mm
Depth: 592mm
Height: 153mm
Technical:SCHG60 Datasheet SCHG60 Instructions |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BN SCHG60
6kW Suspended Ceiling Fan Heater |
