ISP2 2pr 22AWG Individual Foil Screen 600V Grey LSF (8723) - 100m
Product Code: CA 8723
5056631504580
SFX/ISP2-LSF-GRY-100
Loading …
Securiflex
ISP2 2pr 22AWG Individual Foil Screen 600V Grey LSF (100m)
Belden 8723 Equivalent Cable
ISP2 2pr 22AWG Individual Foil Screen 600V Grey LSF (100m)
Belden 8723 Equivalent Cable
ISP2 2pr 22AWG Individual Foil Screen 600V Grey LSF (8723)
CPR: Eca this a 2pair which gives you the four cores.
Widely used in the Security industry for CCTV telemetry purposes but also used in applications
such as computing where extra screening is required to eliminate cross talk between pairs.
CPR: Eca this a 2pair which gives you the four cores.
Widely used in the Security industry for CCTV telemetry purposes but also used in applications
such as computing where extra screening is required to eliminate cross talk between pairs.

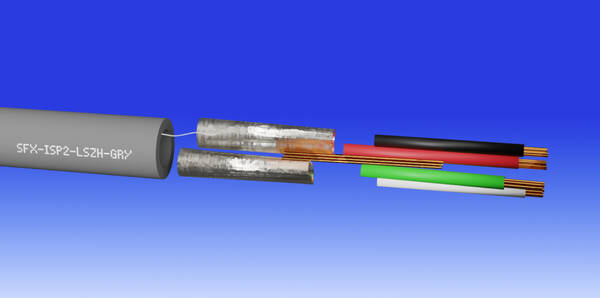

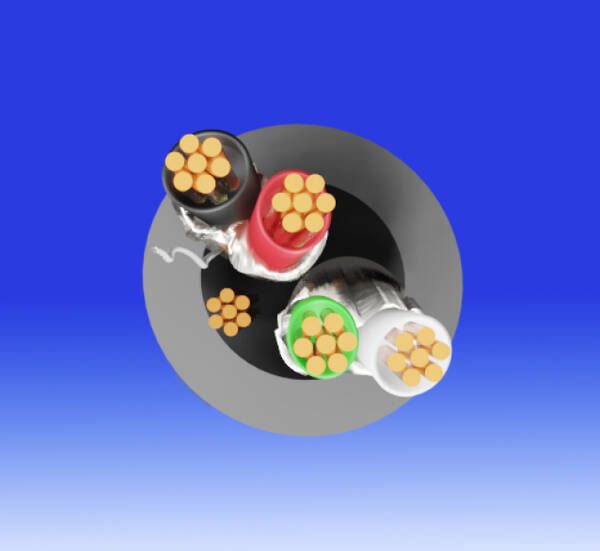

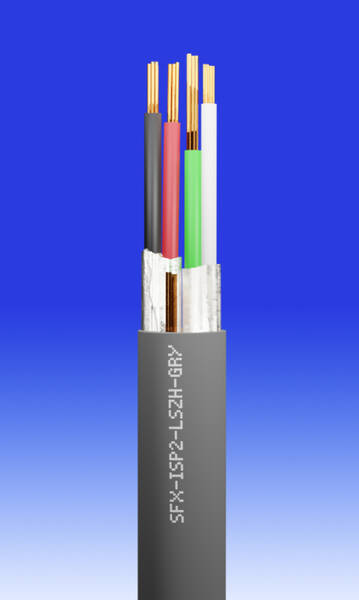

- Tinned copper conductors, (7x0.25mm) 22 AWG,
- Polypropylene insulated cores (red / black & green / white), twisted into pairs, each pair containing AL-PET foil screen.
- Tinned copper drain wire.
- CSA (mm): 0.25
- Colour Code: Red/Black & Green/White
- Available Drum Sizes: 100m, 200m, 250m, 500m
- Voltage Rating: 600V
- Temperature Rating: -20°C to +80°C
- Belden Alt: 8723
- Pairs: 2
- AWG: 22
- Outer Sheath: LSF
- O/D: 4.2
Technical:CA9841 - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
|
CA 8723
ISP2 2pr 22AWG Individual Foil Screen 600V Grey LSF (8723) - 100m |
