OSC10 10 Core 24AWG Overall Foil Screen 600V Grey LSZH (9540) - 100m
Product Code: CA 9540
5056631505235
SFX/OSC10-LSZH-GRY-100
Loading …
Securiflex
OSC10 10 Core 24AWG Overall Foil Screen 600V Grey LSZH
Belden 9540 Equivalent Cable
OSC10 10 Core 24AWG Overall Foil Screen 600V Grey LSZH
Belden 9540 Equivalent Cable
Overall screened multicored data cable RS232.
Uses include RS232, instrumentation and sound applications where balanced lines are not required - can be used for Paxton Readers.
Uses include RS232, instrumentation and sound applications where balanced lines are not required - can be used for Paxton Readers.
- Conductor: Tinned Copper.
- Conductor Diameter mm: 0.19 ±0.008 x 7.
- Stranded Diameter (mm): 0.610.
- Insulation: PVC.
- Insulation Thickness (mm): 0.3.
- Insulation Diameter (mm): 1.20 ±0.10.

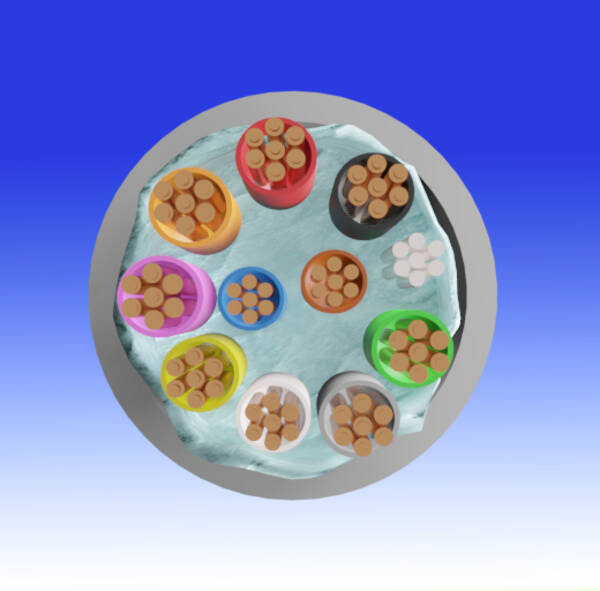

- Insulation Colours: Red,Black,White,Green,Blue,Brown,Orange,Yellow,Violet,Grey.

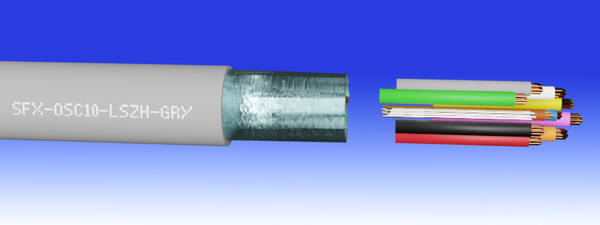

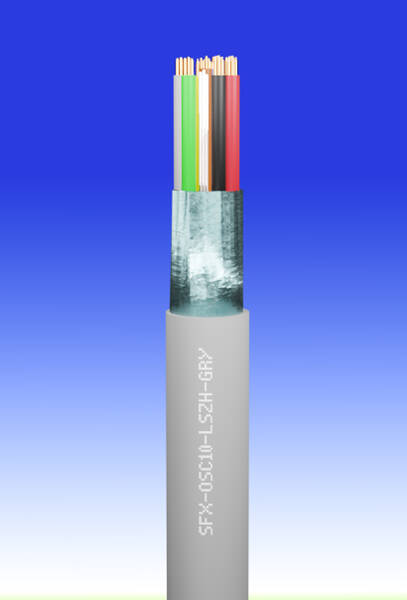

- Sheath Printing: OSC10 10x24AWG Overall Screened LSZH RoHS2 (PO) (m).
- Max Conductor DC resistance @ 20°C: <90.00O/km
- Al-PET Shield: >=115%.
- Drain Wire: Conductor - Tinned Copper at 0.19 ±0.008 x 7 Diameter.
- Jacket: LSZH.
- Jacket Thickness: 0.70mm.
- Overall Diameter: 6.20 ±0.20.
- Jacket Colour: Grey RAL 7042.
- Reaction to Fire: ECA.
- Insulation Resistance @20°C: >200MO/km
- Rated: Temperature: 70°C.
- Rated Voltage: 600V.
Technical:CA9540 - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
|
CA 9540
OSC10 10 Core 24AWG Overall Foil Screen 600V Grey LSZH (9540) - 100m |
