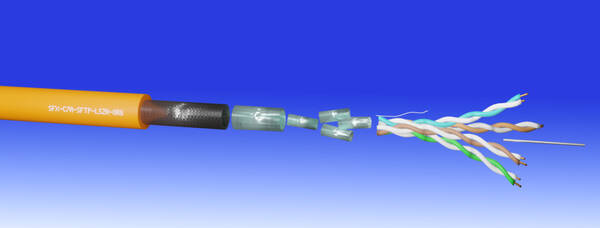

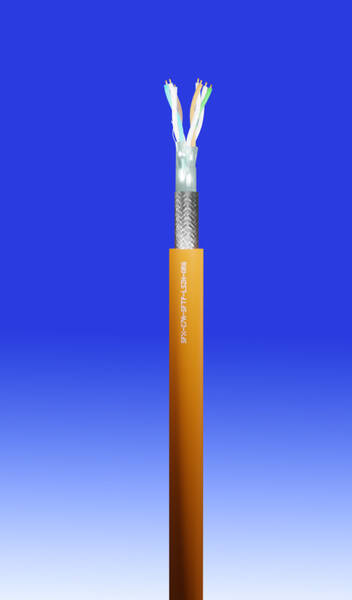

CAT7A - 4pr S/FTP Network Cable LSZH - Orange - 100Mtr Drum
Product Code: CA CAT7ALSZH/100
5056631502920
SFX/C7A-S-FTP-LSZH-ORG-100
Loading …
Category CAT7A
4pr S/FTP Network Cable LSZH
Orange - 100Mtr
4pr S/FTP Network Cable LSZH
Orange - 100Mtr
Overall screened multicored data cable RS232.
Uses include RS232, instrumentation and sound applications where balanced lines are not required.
Conductor: Bare Copper.
Uses include RS232, instrumentation and sound applications where balanced lines are not required.
Conductor: Bare Copper.
- Conductor Diam: 0.58 ±0.01mm.
- AWG: 23.
- Insulation: Skin-Foam-Skin PE.
- Insulation Thickness (mm): 0.18
- Insulation Diameter (mm): 1.38 ±0.10

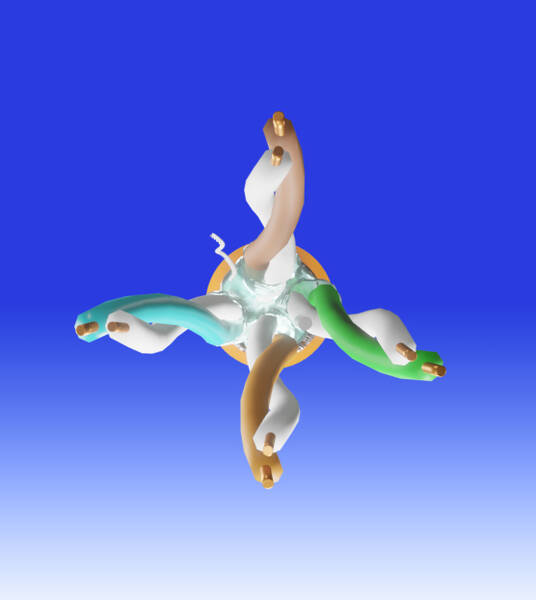

- Insulation Colours:
Blue,White/Blue;
Orange,White/Orange;
Green,White/Green;
Brown/White/Brown. - Max Conductor DC resistance @ 20°C: <93.8O/km
- Rated Temperature: 70°C
- Impedance (1-100MHz): 100O ±15O/100O ±18O/100O ±25O
- Application: Internal Data transmission up to 40Gb/s up to 30m in data centres.
- Standards: ISO/IEC 11801, ANSI/TIA 568C.2-D, CE2014/30/EU, LVD 2014/35/EU, RoHS2 2011/65/EU.
- Al-MYLAR Shield: >=115% on each pair on each pair.
- Drain Wire: Tinned Copper Conductor with a diameter: 0.40 ±0.01.
- Braid: Aluminium-Magnesium alloy.
- Braid Construction: 0.12 ±0.008 x 8 x 6.
- Braid Coverage: >=40%.
- Nylon Rip-Cord: White 210D.
- Jacket: LSZH.
- Jacket Thickness (mm): 0.55 ±0.05.
- Overall Diameter (mm): 7.80 ±0.50.
- Jacket Colour: Orange RAL 2003.
- Sheath Printing: Cat 7A S/FTP 4 PR 23AWG LSZH ISO/IEC 11801 EN 50173-1:2011 (PO) (m)
- Reaction to Fire: Dca -s1b -a1 -d2.
Technical:CACAT7ALSZH/100 Network Wiring |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
|
CA CAT7ALSZH/100
CAT7A - 4pr S/FTP Network Cable LSZH - Orange - 100Mtr Drum |
RJ45 CAT6/CAT6A/CAT7/CAT8 Shielded Plug
Loading …
KAUDEN™
RJ45 CAT6/CAT6A/CAT7/CAT8 Shielded Plug
RJ45 CAT6/CAT6A/CAT7/CAT8 Shielded Plug
Our contractor grade, field termination Category 8 plug is an ideal solution for time saving and high-quality connections.
Capable of performing to Category 8 standard, this plug is also backwards compatible all the way to voice.
Due to its design, it can be terminated on to a wide variety of cabling quickly with no tools required.
Capable of performing to Category 8 standard, this plug is also backwards compatible all the way to voice.
Due to its design, it can be terminated on to a wide variety of cabling quickly with no tools required.
- Tool-less termination for time saving and efficient termination on site
- Universal type for solid installation or stranded cables
- Suitable for cable OD 6-8.5mm with core OD 1.0 – 1.5mm,
copper core sizes 22-24 AWG/0.5- 0.65 mm - Tested to Category 8 channel level
Technical:CXLCAT8FD Datasheet - 190kb pdf |
|
