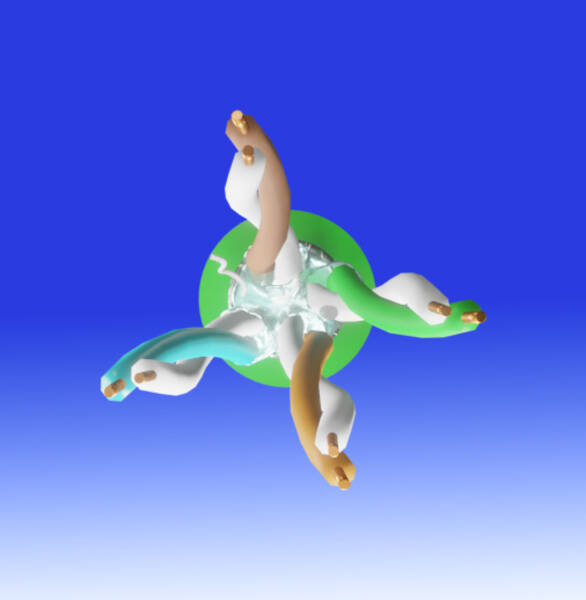

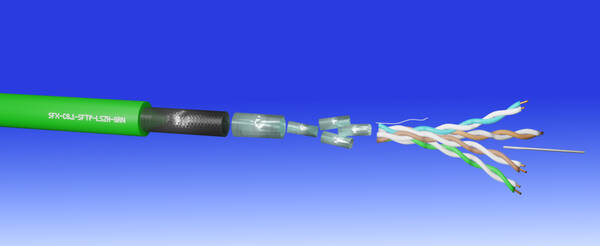

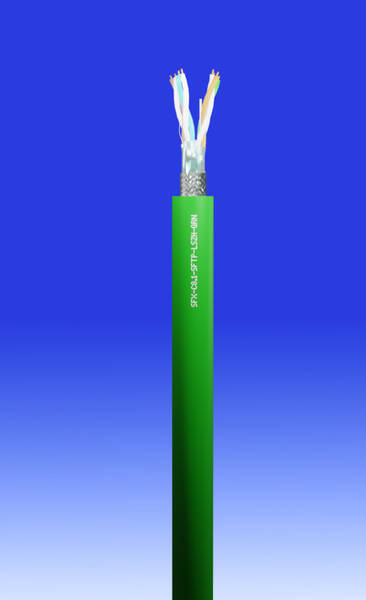

CAT8.1 - 4pr S/FTP Network Cable LSZH - Green - 100Mtr Drum
Product Code: CA CAT8.1LSZH/100
5056631502982
SFX/C8.1-S-FTP-LSZH-GRN-100
Loading …
Category CAT8.1
4pr S/FTP Network Cable LSZH
Green - 100Mtr
4pr S/FTP Network Cable LSZH
Green - 100Mtr
Overall screened multicored data cable RS232.
Uses include RS232, instrumentation and sound applications where
balancedlines are not required - can be used for Paxton Readers.
This cabling is specially designed to transport data at a speed of 40 Gb / s over 30 meters.
It is aimed at data center applications for connecting equipment that has 40GBase-T ports.
Conductor: Bare copper.
Uses include RS232, instrumentation and sound applications where
balancedlines are not required - can be used for Paxton Readers.
This cabling is specially designed to transport data at a speed of 40 Gb / s over 30 meters.
It is aimed at data center applications for connecting equipment that has 40GBase-T ports.
Conductor: Bare copper.
- Conductor Diam: 0.596 ±0.005mm.
- AWG: 22.
- Insulation: Skin-Foam-Skin PE.
- Insulation Thickness (mm): 0.44
- Insulation Diameter (mm): 1.48 ±0.05.
- Insulation Colours: Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown.
- Max Conductor DC resistance @ 20°C: <95O/km
- Rated Temperature: 70°C
- Impedance (1-100MHz): 100O ±5
- Application: Internal Data transmission up to 40Gb/s up to 30m in data centres.
- Standards: ISO/IEC 11801, ANSI/TIA 568C.2-D, CE2014/30/EU, LVD 2014/35/EU, RoHS2 2011/65/EU.
- Al-MYLAR Shield: >=115% on each pair on each pair.
- Drain Wire: Tinned Copper Conductor with a diameter: 0.40 ±0.01.
- Braid: Aluminium-Magnesium alloy.
- Braid Construction: 0.12 ±0.008 x 8 x 6.
- Braid Coverage: >=40%.
- Nylon Rip-Cord: White 210D.
- Jacket: LSZH.
- Jacket Thickness (mm): 0.55 ±0.05.
- Overall Diameter (mm): 8.00 ±0.50.
- Jacket Colour: Green RAL 6018.
- Sheath Printing: Cat 8.1 S/FTP 4PR 23AWG LSZH ISO/IEC 11801 ANSI/TIA 568C.2-D (PO) (m).
- Reaction to Fire: Dca -s1b -a1 -d2.
Technical:CACAT8.1LSZH/100 Network Wiring |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
|
CA CAT8.1LSZH/100
CAT8.1 - 4pr S/FTP Network Cable LSZH - Green - 100Mtr Drum |
RJ45 CAT6/CAT6A/CAT7/CAT8 Shielded Plug
Loading …
KAUDEN™
RJ45 CAT6/CAT6A/CAT7/CAT8 Shielded Plug
RJ45 CAT6/CAT6A/CAT7/CAT8 Shielded Plug
Our contractor grade, field termination Category 8 plug is an ideal solution for time saving and high-quality connections.
Capable of performing to Category 8 standard, this plug is also backwards compatible all the way to voice.
Due to its design, it can be terminated on to a wide variety of cabling quickly with no tools required.
Capable of performing to Category 8 standard, this plug is also backwards compatible all the way to voice.
Due to its design, it can be terminated on to a wide variety of cabling quickly with no tools required.
- Tool-less termination for time saving and efficient termination on site
- Universal type for solid installation or stranded cables
- Suitable for cable OD 6-8.5mm with core OD 1.0 – 1.5mm,
copper core sizes 22-24 AWG/0.5- 0.65 mm - Tested to Category 8 channel level
Technical:CXLCAT8FD Datasheet - 190kb pdf |
|
