Speaker Cable 2 Core BC 30x0.25mm 16AWG Pink LSZH 100m Drum
Product Code: CA PRO2C
5056631506492
SFX/SPK-PRO-2C-LSZH-PNK-100
Loading …
Speaker Cable 2 Core BC 30x0.25mm 16AWG
Pink LSZH
Pink LSZH
Generally used for high and low end domestic sound
installation and connecting sound systems to speakers.
We offer both a budget and professional range.
The professional range being manufactured from oxygen free copper (OFC)
giving low resistance and optimum sound performance at all times.
installation and connecting sound systems to speakers.
We offer both a budget and professional range.
The professional range being manufactured from oxygen free copper (OFC)
giving low resistance and optimum sound performance at all times.

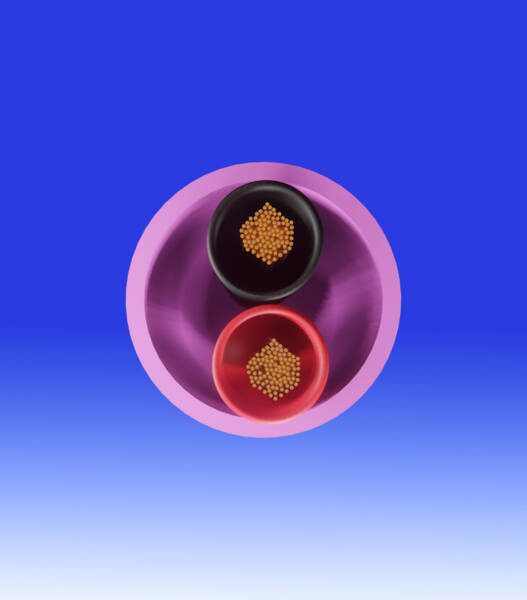

- Filler: Cotton Rope.
- Strands: 30/0.25.
- AWG: 16
- CSA: 1.5
- Insulation Thickness (mm): 0.31.
- Insulation Diameter (mm): 2.25 ±0.10.
- Insulation Colours: Red, Black.
- Max Conductor DC resistance @ 20°C
- Insulation Resistance @20°C: >200MO/km
- Jacket Thickness (mm): 0.60 ±0.01.
- Overall Diameter (mm): 6.20 ±0.20.
- Jacket Colour: Pink RAL 3015.

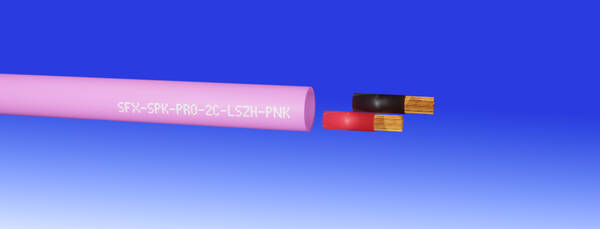

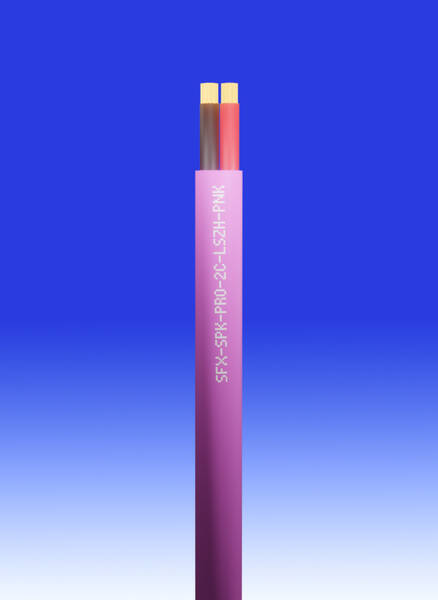

- Sheath Printing: Secure Sound 2C 1.5mm Speaker LSZH RoHS2 (PO) (m).
- Reaction to Fire: FCA.
- Rated Temperature: 70°C.
- Rated Voltage: 300V.
Technical:CAPRO2C |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
|
CA PRO2C
Speaker Cable 2 Core BC 30x0.25mm 16AWG Pink LSZH 100m Drum |
