TSR Sensor Plus Auto Storage Heater 2500w5011139034700C79351

Rating Storage (kW) – 2.5kw
Charge Acceptance (7 hrs) (kWh) – 17.6kWh
Number of Elements – 3
Number of Core Bricks – 12
Dimensions - Height 705mm – Width – 788mm – Depth – 170mm

Weight – 110kg - Incl Bricks
TSR Sensor Plus Auto Storage Heater 2500w
Working on any low-cost tariff, these heaters monitor the room temperature and energy stored within the heater core to avoid overcharging. This can save up to 15% of the energy used by ordinary storage heaters.
Key features include:

Multi-sense two thermostatic sensor control system for heat storage and room temperature control
The only storage heater available that automatically monitors and controls heat output through a thermostatic sensor
Controls couldn't be simpler - one for input and one for output
Multi-sense system enables energy savings of up to 15%
Automatic control means little if any control adjustment - just set and forget
All multi-sense sensors are mounted within the heater
Lockable controls cover
  • Elements (storage) - mineral insulated stainless steel sheathed
  • Insulation - opacified silicaceous aerogel and mineral fibre mat
  • Storage core - high density iron oxide compound
  • Controls* (Output) - manually adjustable thermostat controlling output damper
  • Controls (Input) - hydraulic charge control thermostat, manually adjustable
  • Protection - two level thermal safety overheat
  • Supply - 230/240V AC single phase


Assembly - 216kb pdf Instructions - 60kb pdf
Order Code
Price (ex VAT)
Price (inc VAT)

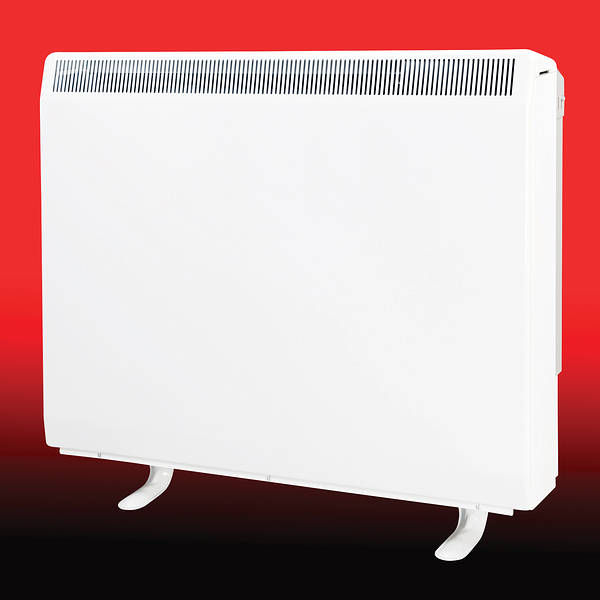

product photo


TSR Sensor Plus Auto Storage Heater 2500w Heavy Goods*


EA 3+




EA 3+
