TSR Sensor Plus Auto Storage Heater 850w - Discontinued

Please try Storage Heaters for alternative products.

TSR Sensor Plus Auto Storage Heater 850w5011139034670C79331

Loading …

Rating Storage (kW) – 0.9kw
Charge Acceptance (7 hrs) (kWh) – 6.3kWh
Number of Elements – 1
Number of Core Bricks – 4
Dimensions – Height 705mm – Width – 335mm – Depth – 170mm

Weight – 41kg - Incl Bricks
TSR Sensor Plus Auto Storage Heater 850w
Working on any low-cost tariff, these heaters monitor the room temperature and energy stored within the heater core to avoid overcharging.
This can save up to 15% of the energy used by ordinary storage heaters.

Key features include:
Multi-sense two thermostatic sensor control system for heat storage and room temperature control
The only storage heater available that automatically monitors and controls heat output through a thermostatic sensor
Controls couldn't be simpler - one for input and one for output
Multi-sense system enables energy savings of up to 15%
Automatic control means little if any control adjustment - just set and forget
All multi-sense sensors are mounted within the heater
Lockable controls cover

TSR6AW have no user controls and are IPX2 rated (drip-proof)
  • Elements (storage) - mineral insulated stainless steel sheathed
  • Insulation - opacified silicaceous aerogel and mineral fibre mat
  • Storage core - high density iron oxide compound
  • Controls (Input) - hydraulic charge control thermostat, manually adjustable
  • Protection - two level thermal safety overheat
  • Supply - 230/240V AC single phase


Assembly - 216kb pdf Instructions - 60kb pdf
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity

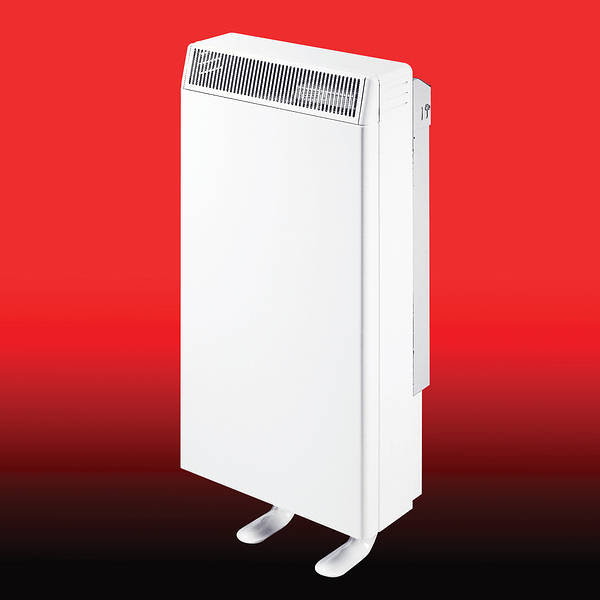

product photo CD TSR6AW TSR Sensor Plus Auto Storage Heater 850w
