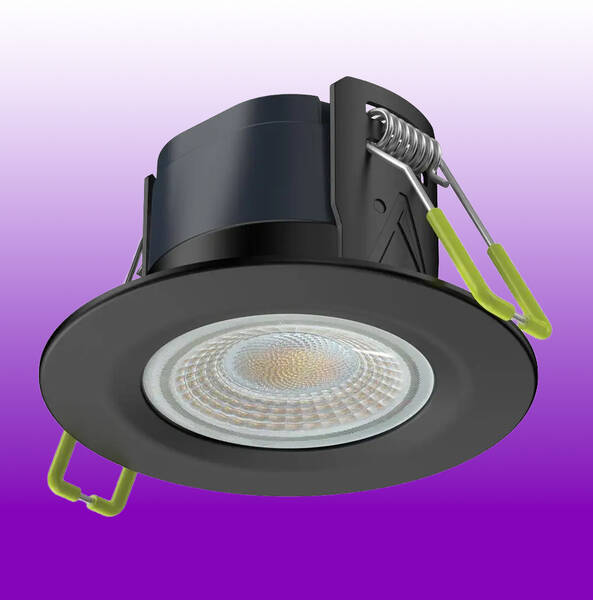

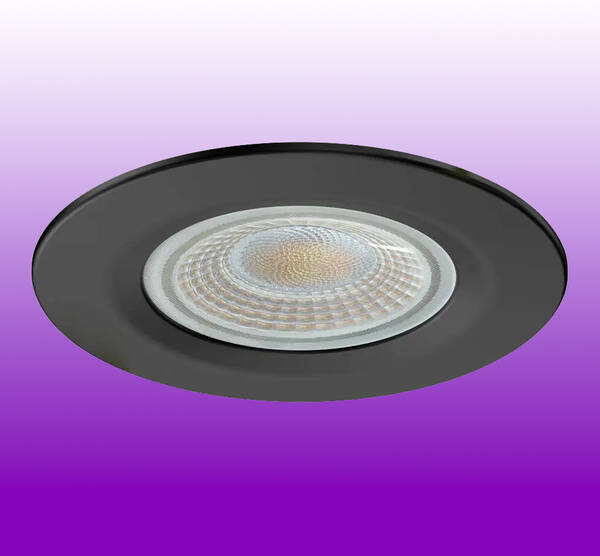

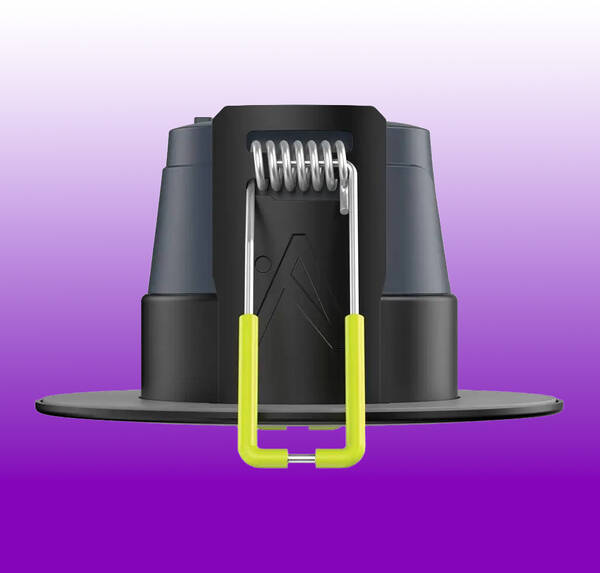

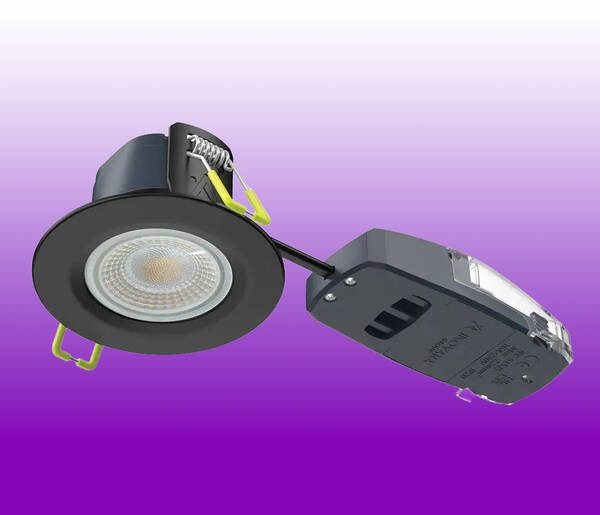

5W LED H2 Lite Select 3CCT Fire Rated Downlight IP65 - Black
Product Code: CL DLT389BK
5056500431061
DLT389BK
Loading …
Cut out: Ø60-72mm
Overall diameter: Ø85mm
Depth: 44mm
Collingwood H2 Lite Select
5W LED 3CCT Fire Rated Downlight IP65 - Black
5W LED 3CCT Fire Rated Downlight IP65 - Black
The H2 Lite Select is an entry level solution designed with feedback from the installer community and is engineered to a high standard.
The colour temperature can be easily adjusted between 2700K, 3000K and 4000K
by simply moving the switch on the back of the luminaire.

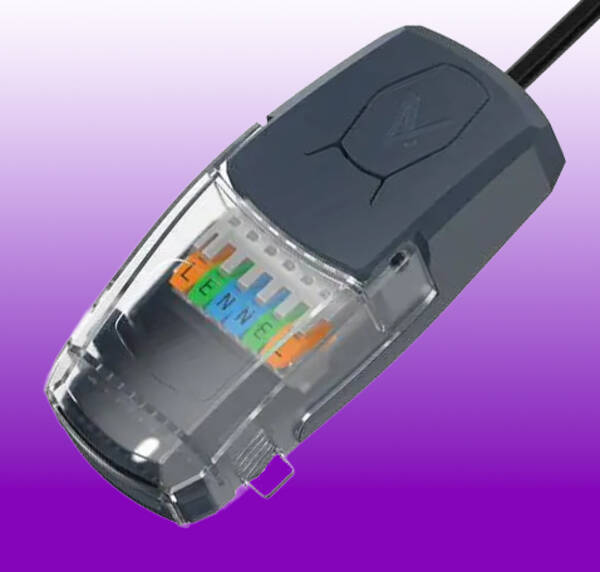

The product comes complete with a newly designed two-part connector
and push-in terminal block with a LENNEL wiring configuration.
The colour temperature can be easily adjusted between 2700K, 3000K and 4000K
by simply moving the switch on the back of the luminaire.
The product comes complete with a newly designed two-part connector
and push-in terminal block with a LENNEL wiring configuration.
- Input voltage: 220-240V AC
- Wattage: 5W
- Colour switchable between 2700K, 3000K and 4000K
- Lumen output: 600-650lm
- Up to 130lm/W
- Beam angle: 55°
- Colour rendering index: CRI>80
- TRIAC Mains dimmable
- New lever terminal block complete with testing ports for speed and ease of installation
- 2 part first-fix connector with loop in/loop out terminals
- Compatible with Click Flow CT100 series
- IP65 rated
- Insulation coverable - rolled and blown insulation
- Ceiling joist approvals: Solid Timber - 30/60/90min, I-Joist - 30min, Metal Web - 30min
- 5 year warranty
Cut out: Ø60-72mm
Overall diameter: Ø85mm
Depth: 44mm
Technical:CLDLT389 Datasheet - 580kb pdf CLDLT389 Instructions - 1.1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CL DLT389BK
5W LED H2 Lite Select 3CCT Fire Rated Downlight IP65 - Black |
