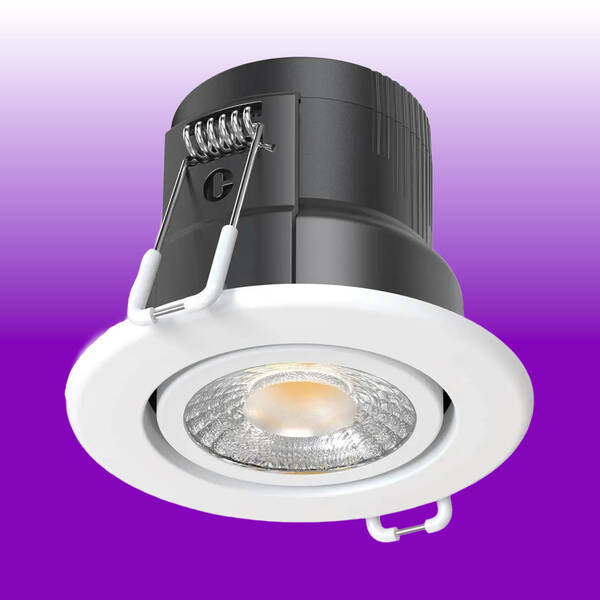

4/6W 4CCT LED H4 Lite CSP Fire Rated Adjustable Downlight IP65 - White
Product Code: CL H4CSPW
5056500422847
DLT661600A
Loading …
Cut out: Ø70-72mm
Overall diameter: Ø90mm
Depth: 65mm
Collingwood H4 Lite CSP
4/6W 4CCT LED Fire Rated Adjustable Downlight IP65 - White
4/6W 4CCT LED Fire Rated Adjustable Downlight IP65 - White
H4 Lite CSP is a superior downlight that is engineered to be the perfect fit-and-forget solution.
The colour temperature and wattage can be easily adjusted with switches located on the rear of the fitting. Alongside 2700K, 3000K & 4000K settings, the addition of the 2200K colour temperature gives you the option of creating an inviting and warm atmosphere. Large piano key terminals allow loop-in/loop-out wiring with ease.
The colour temperature and wattage can be easily adjusted with switches located on the rear of the fitting. Alongside 2700K, 3000K & 4000K settings, the addition of the 2200K colour temperature gives you the option of creating an inviting and warm atmosphere. Large piano key terminals allow loop-in/loop-out wiring with ease.
- Wattage switchable between 4W & 6W
- Colour switchable between 2200K, 2700K, 3000K & 4000K
- Lumen range: 460-580 (4W) / 630-780 (6W)
- High efficacy of up to 145lm/W
- 55° beam angle
- Adjustable with a 20° tilt
- Mains dimmable, works with leading & trailing edge dimmers
- Innovative smooth glide clip design for smooth installation
- 2 part first-fix connector with loop in/loop out terminals
- Compatible with Click Flow CT100 series
- IP65 rated
- Insulation coverable - rolled and blown insulation
- Ceiling joist approvals: Solid Timber - 30/60/90min, I-Joist - 30min, Metal Web - 30min
- Building regulations: Part B, C, E, P & L
- 7 year warranty
Cut out: Ø70-72mm
Overall diameter: Ø90mm
Depth: 65mm
Technical:CLH4CSP Datasheet - 590kb pdf CLH4CSP Instructions - 1.3mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CL H4CSPW
4/6W 4CCT LED H4 Lite CSP Fire Rated Adjustable Downlight IP65 - White |
