MCB terminal capacity,

25 mm on all mcb's

Description

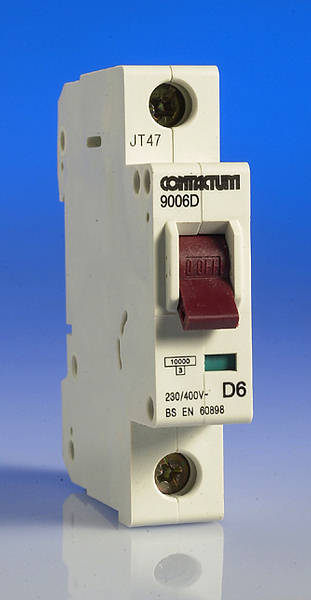

Contactum MCB ( Type D )

6 Amp - Single Pole

Distribution Board use

Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.

Contactum Industrial Range MCBs have a short circuit breaking capacity of 10,000A (M10).
The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.

The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
When the green flag below the dolly is visible, then a contact gap of 4 mm has been achieved. Contactum MCBs may therefore be used as single pole isolating switches where appropriate.

Technical
