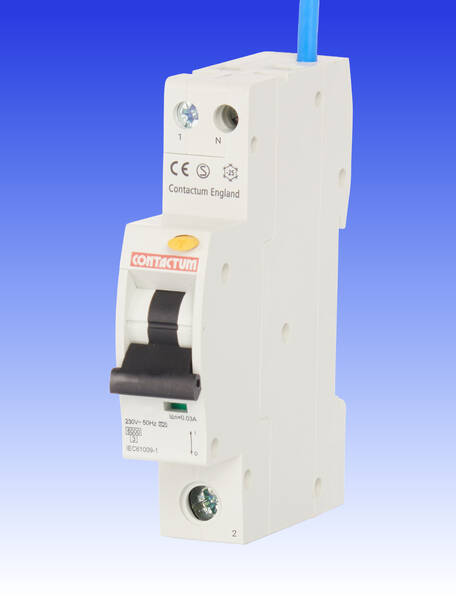

40A 30mA SP+N Bi-directional RCBO - Contactum 10kA (Type A) B Curve
Product Code: CP BR0640ABN
5056009589522
CPBR0640ABN
Loading …
Contactum
40A 10kA Type A SP+N Compact Bi-directional RCBO
B Curve
40A 10kA Type A SP+N Compact Bi-directional RCBO
B Curve
Regulation 722.531.3 of BS7671:2018+A2:2022 (the wiring regulations) requires that the RCDs used to
protect EV car chargers shall disconnect all live conductors. The neutral is considered a live conductor
and therefore must also disconnect in the event of a fault.
Contactum's single module SP+N 30mA RCBO is designed to assist contractors to comply with this requirement .
This device is of a compact design and slots seamlessly into the Defender 2 Consumer Units.
It incorporates Type A RCD protection with a current rating of 40A in B overcurrent curve.
protect EV car chargers shall disconnect all live conductors. The neutral is considered a live conductor
and therefore must also disconnect in the event of a fault.
Contactum's single module SP+N 30mA RCBO is designed to assist contractors to comply with this requirement .
This device is of a compact design and slots seamlessly into the Defender 2 Consumer Units.
It incorporates Type A RCD protection with a current rating of 40A in B overcurrent curve.
- Rated voltage: 220-250V
- Rated current: 40A
- Rated kA: 10
- Frequency: 50-60Hz
- Ambient operating temperature: -5 to 40°C
(24 hour average not exceeding 25°C) - Wiring system: 2 pole
- Bi-directional
- Width in number of modular spacings: 1
- Nature of supply: AC
- Rated fault current: 30mA
- Release characteristic: B
- Mounting method: DIN Rail
- Associated standards: BS EN 61009
Technical:CPBR0640ABN Datasheet - 440kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CP BR0640ABN
40A 30mA SP+N Bi-directional RCBO - Contactum 10kA (Type A) B Curve |
