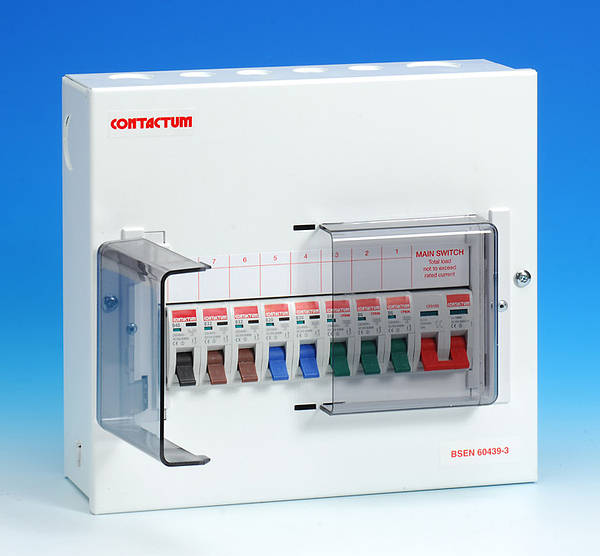

8 Way Metal Consumer Unit
Product Code: CP D08M
5055556221848
CPD08M
Loading …
Standards:
Consumer unit - BS EN 60439-3
Isolator - BS EN 60947-3 AC22
Terminal capacities:
100A Main switch - 35/50mm²
Neutral / Earth bars 16mm²
Dimensions (mm)
H-240 W-265 D-90 + 26 (door)
Contactum "CP" Range
8 Way Metal Consumer Unit
8 Way Metal Consumer Unit
Supplied with 100A double pole switch
Supplied Less MCB's
- Designed and manufactured in London
- Tested to BS EN 60439-3 in a UKAS accredited laboratory
- Generous cabling space
- Secure 3 point fixing
- Coloured MCB dolly's for easy identification
- Scroll Down for Flush Mounting Plate Option
- All devices lockable off
- Full range of command and control devices
- Up to 25 year guarantee
- Full customer design service available
- Knockouts -
Top & bottom: 1 x 32mm, 1 x 25mm, 4 x 20mm,
Sides: 1 x 32mm
Back:, 4 x Rectangle 20mm x 50mm
Standards:
Consumer unit - BS EN 60439-3
Isolator - BS EN 60947-3 AC22
Terminal capacities:
100A Main switch - 35/50mm²
Neutral / Earth bars 16mm²
Dimensions (mm)
H-240 W-265 D-90 + 26 (door)
Technical:CP Range Catalogue - 450kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CP D08M
8 Way Metal Consumer Unit |
Contactum - NEW "CP" Range - 6kA Type B SP MCB
Loading …
CP B0606B
CP B0610B
CP B0616B
CP B0620B
CP B0632B
CP B0640B
CP B0650B
CP B0663B
Width: 17mm
Height: 84mm
Depth: 73mm
Contactum NEW "CP" Range
6kA Type B SP MCB
6kA Type B SP MCB
Replaces CPB MCBs
- Rated voltage: 220-250V
- Breaking capacity: 6kA
- B Curve
- Single pole
- Colour coded dolly switch to allow quick
visual identification of ratings - Conforms to BS EN 60898
Width: 17mm
Height: 84mm
Depth: 73mm
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum MCBs ( Type C ) - 10KA
Loading …
Contactum
MCBs ( Type C ) - 10KA
MCBs ( Type C ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6KA Type A B Curve SP Compact RCBO's
Loading …
CP CBR0606AB
Contactum
6KA Type A SP Compact RCBO's
B Curve
6KA Type A SP Compact RCBO's
B Curve
Type A as standard, Faster installation time, Faster testing time and Compact in size. Available in B or C tripping curve, 6kA & 10kA breaking capacities from 6-50A making it one of the most comprehensive ranges on the market today.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6KA Type A C Curve SP Compact RCBO's
Loading …
B Curve Shown
CP CBR0610AC
CP CBR0616AC
CP CBR0620AC
CP CBR0625AC
CP CBR0632AC
CP CBR0640AC
Contactum
6KA Type A SP Compact RCBO's
C Curve
6KA Type A SP Compact RCBO's
C Curve
Type A as standard, Faster installation time, Faster testing time and Compact in size. Available in B or C tripping curve, 6kA & 10kA breaking capacities from 6-50A making it one of the most comprehensive ranges on the market today.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
