8 Way Metal Dual Split Consumer Unit5055556222432CPDS088M
Loading …
Standards:
Consumer unit - BS EN 60439-3
Isolator - BS EN 60947-3 AC22
RCD - BS EN 61008 Type A
Terminal capacities:
100A Main switch - 35/50mm²
80A RCD - 35mm²
Neutral / Earth bars 16mm²
Dimensions (mm)
H-240 W-335 D-90 + 26 (door)
Contactum "CP" Range

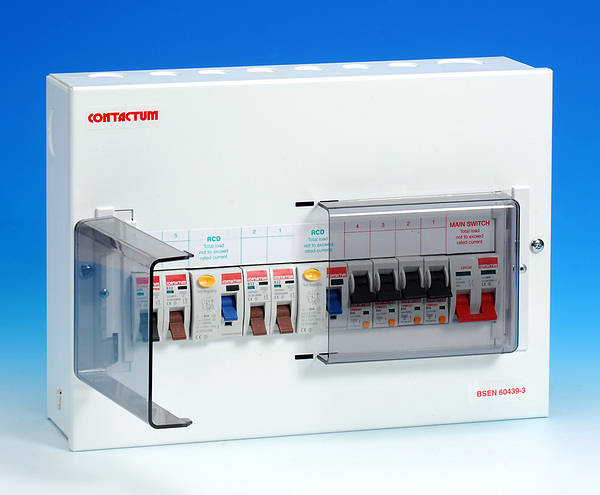

8 Way Metal Dual Split Consumer Unit
8 Way Metal Dual Split Consumer Unit
100A Isolator (2 ways), 80A 30mA RCD (4 ways) & 80A 30mA RCD (4 ways)
Uses a flexible configuration to provide optimal combinations of RCD’s, MCB’s and RCBO’s
Direct fed section for individual MCB’s or RCBO’s
Two RCD sections allow division of circuits to minimise nuisance tripping
Other configurations can be supplied to order
Supplied less MCB's
- Designed and manufactured in London
- Tested to BS EN 60439-3 in a UKAS accredited laboratory
- Generous cabling space
- Secure 3 point fixing
- Coloured MCB dolly's for easy identification
- Scroll Down for Flush Mounting Plate Option
- All devices lockable off
- Full range of command and control devices
- Up to 25 year guarantee
- Full customer design service available
- Knockouts -
Top & bottom: 1 x 32mm, 1 x 25mm, 6 x 20mm,
Sides: 1 x 32mm
Back:, 6 x Rectangle 20mm x 50mm
Technical:CP Range Catalogue - 450kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
|
CP DS088M | 8 Way Metal Dual Split Consumer Unit |
Contactum MCB's - Type:- B
Loading …
Contactum "CP and New Defender" Range
Type: B - MCB's
Type: B - MCB's
and Contactum’s own exacting specifications and quality control procedures
Colour coded dolly allow quick visual identification of ratings
Window on the device indicates on (red) and off (green)
Standards:- IEC 60898 BS EN 60898
Technical:CP Range Catalogue - 450kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CP B06 | 6 Amp MCB - Contactum |
|
|
|||||||||
 |
CP B10 | 10 Amp MCB - Contactum |
|
|
|||||||||
 |
CP B16 | 16 Amp MCB - Contactum - B Type |
|
|
|||||||||
 |
CP B20 | 20 Amp MCB - Contactum - B Type |
|
|
|||||||||
 |
CP B32 | 32 Amp MCB - Contactum - B Type |
|
|
|||||||||
 |
CP B40 | 40 Amp MCB - Contactum - B Type |
|
|
|||||||||
 |
CP B50 | 50 Amp MCB - Contactum - B Type |
|
|
|||||||||
 |
CP B63 | 63 Amp MCB - Contactum - B Type |
|
|
|||||||||
 |
CP A02 | 6 Contactum Blanks - (can be cut) |
|
|
|||||||||
 |
CP BBL | 1 Module Din Rail Mounted Blank |
|
|
|||||||||
 |
CP A10 | MCB Toggle Locking Device (9001) |
|
|
|||||||||
 |
BK GCD | Circuit Detail Labels - pack of 25 - NICEIC |
|
|
Contactum MCB's - Type:- C
Loading …
Contactum "CP and New Defender" Range
Type: C - MCB's
Type: C - MCB's
and Contactum’s own exacting specifications and quality control procedures
Colour coded dolly allow quick visual identification of ratings
Window on the device indicates on (red) and off (green)
Standards:- IEC 60898 BS EN 60898
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
|
CP C06 | 6 Amp Contactum MCB - C Type |
|
|
|||||
|
CP C10 | 10 Amp Contactum MCB - C Type Extended Range* |
|
|
|||||
|
CP C16 | 16 Amp Contactum MCB - C Type |
|
|
|||||
|
CP C20 | 20 Amp Contactum MCB - C Type |
|
|
|||||
|
CP C32 | 32 Amp Contactum MCB - C Type |
|
|
|||||
|
CP C40 | 40 Amp Contactum MCB - C Type Extended Range* |
|
|
|||||
|
CP C50 | 50 Amp MCB Contactum - C Type Extended Range* |
|
|
|||||
|
CP C63 | 63 Amp Contactum MCB - C Type Extended Range* |
|
|
Contactum RCBO's
Loading …
Contactum "CP and New Defender" Range
RCBO's
RCBO's
and Contactum’s own exacting specifications and quality control procedures
Standards:- IEC 61009 BS EN61009
Technical:CP Range Catalogue - 450kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
 |
CP BR061 | 6 Amp 30mA RCBO - Contactum |
|
|
|||||
 |
CP BR101 | 10 Amp 30mA RCBO - Contactum |
|
|
|||||
 |
CP BR161 | 16 Amp 30mA RCBO - Contactum |
|
|
|||||
 |
CP BR201 | 20 Amp 30mA RCBO - Contactum |
|
|
|||||
 |
CP BR321 | 32 Amp 30mA RCBO - Contactum |
|
|
|||||
 |
CP BR401 | 40 Amp 30mA RCBO - Contactum |
|
|
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CP A11 | Spare 9 Way Bus Bar for 100 Amp Isolator or 63 Amp RCD |
|
|
|||||||||
 |
CP A13 | Spare 9 Way Bus Bar for 80 Amp & 100 Amp RCD's | |||||||||||
 |
CP 14MFC | Flush Mounting Plate - Only - 14 module | |||||||||||
 |
WY REC2S | Wylex 100A DP Supply Isolator |
|
|
|||||||||
 |
WD 328PW | DeWalt Wall-Dog 32mm x 8mm Pan Head - White |
|
|
|||||||||
 |
WD 328PC | DeWalt Wall-Dog 32mm x 8mm Pan Head - Chrome |
|
|
