16 Way Insulated Dual Split Consumer Unit 80A RCDs - Discontinued

Please try CP Dual RCD Consumer Units for alternative products.

16 Way Insulated Dual Split Consumer Unit 80A RCDs5055556222678CPDS168P

New Design

Supplied less MCB's

Standards:
Consumer unit - BS EN 60439-3
Isolator - BS EN 60947-3 AC22
RCD - BS EN 61008 Type A

Terminal capacities:
100A Main switch - 35/50mm²
80A RCD - 35mm²
Neutral / Earth bars 16mm²

Dimensions (mm)
W:475 x H:232 x D:110
Contactum "CP" Range
16 Way Insulated Dual Split Consumer Unit
Constructed from fire resistant 'VO' rated material

Maximum Combinations - 16 ways
100A Isolator (7 ways), 80A 30mA RCD (9 ways) & 80A 30mA RCD (9 ways)

Uses a flexible configuration to provide optimal combinations of RCD’s, MCB’s and RCBO’s
Direct fed section for individual MCB’s or RCBO’s
Two RCD sections allow division of circuits to minimise nuisance tripping
Other configurations can be supplied to order

Supplied less MCB's


  • Designed and manufactured in London
  • Tested to BS EN 60439-3 in a UKAS accredited laboratory
  • Generous cabling space
  • Secure 3 point fixing
  • Coloured MCB dolly's for easy identification
  • Built-In Spirit Level for easy alignment

Technical:

CP Range Catalogue - 450kb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

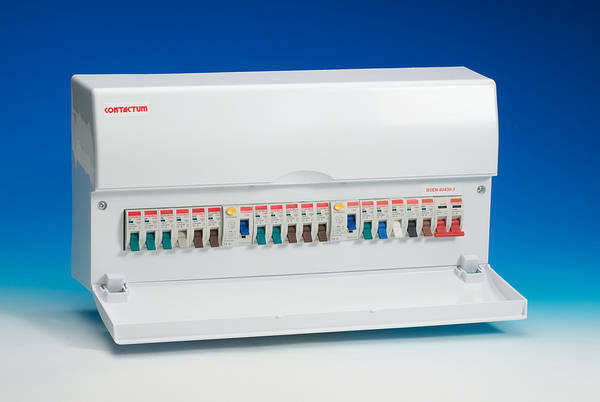

product photo

CP DS168P

16 Way Insulated Dual Split Consumer Unit 80A RCDs

EA

£55.00

EA

£66.00

Discontinued
