Triplex - TV Sat FM Outlet Euro Module - Screened - White5050171033982PSW132M/S
Loading …

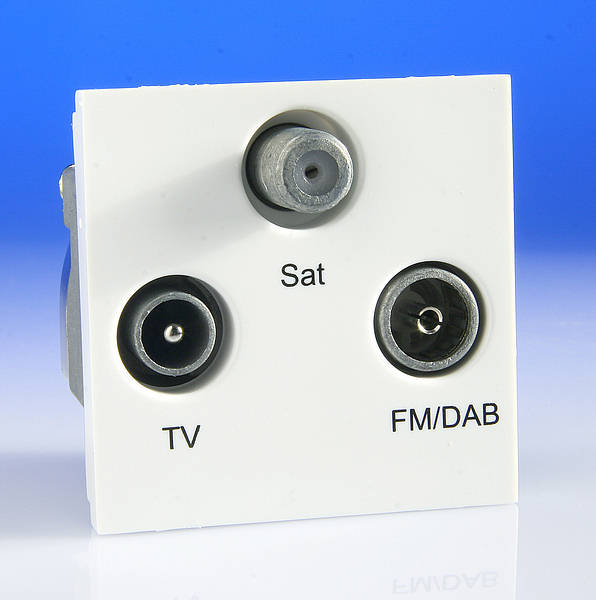

Triplex - TV Sat FM Triplexed Outlet Module - Screened - White
50mm module
50mm module
Low loss, minimal ingress and negligible module cross talk.
- SAT1, TV & FM/DAB outlets
- Low insertion loss
- Excellent matching and isolation
- Fully screened to EN 50083-2: >65dB to
1 GHz and >55dB to 2.2GHz - Compact screened housings
- Easy cable connections and access
- For 1 mm cable (PF100, H109F, QF100, etc.)
- Requires 35mm deep pattress
- Why Screened
- 1 - At present due to all the Digital Transmissions , it is advisable to use Fully screened modules.
- 2 - Screening reduces RF interference from other sources.
- 3 - Enhances picture and sound quality.
- 4 - Stops the retransmission of signals at higher digital frequencies.
- Sky - Add if required
Telephone Module - Whole House Distribution - Add
Return Module
Technical:Instructions - 490kb - pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
|
CX 132M | Triplex - TV Sat FM Outlet Euro Module - Screened - White |
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MX 260 | Male Coaxial Plug - Metal |
|
|
|||||||||
 |
MX 280 | Female Coaxial Plug |
|
|
|||||||||
 |
MX SATP | Satellite Plug F Type |
|
|
|||||||||
 |
CA PF100W | White Foam Filled Digital Satellite & Aerial Cable |
|
|
|||||||||
 |
CX 424W | Telephone Extension Euro Module IDC - White |
|
|
|||||||||
 |
CX 113M | Satellite Outlet Euro Module F Type - Screened - White |
|
|
|||||||||
 |
MX HDU681 | 8 Way Loft Distribution and Amplifier |
