Water Butt Submersible Pump
Product Code: DR WBP1A
5010559402182
40218
Loading …
Specification:
Max head height - 12M
Max operating depth - 8M
Max output - 40L/min
Maxi particle size - 3mm dia.
Overall height
(inc. ext. pipes) - 1.6M
Max head height - 12M
Max operating depth - 8M
Max output - 40L/min
Maxi particle size - 3mm dia.
Overall height
(inc. ext. pipes) - 1.6M

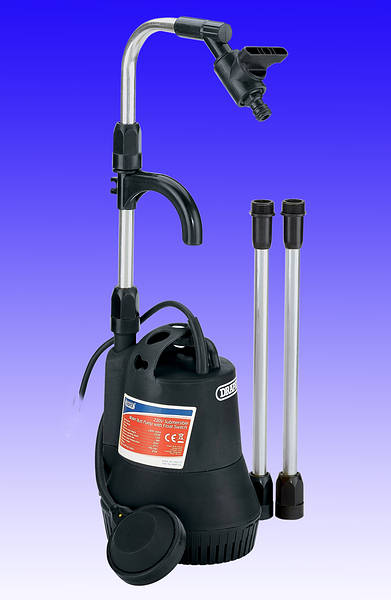

Draper - Water Butt
Submersible Pump
Submersible Pump
Can also be used to drain ponds and small swimming pools.
Supplied with three piece aluminium swan neck extension pipe, adjustable flow control feature and snap on connector.
Float switch automatically turns pump off when water level has dropped.
Maximum height 0.98M.
Supplied complete with BS approved non-rewireable moulded plug and 10M (approx.) of cable.
Use with RCD controlled mains 230v supply
- Supplied with 2 piece aluminium swan neck extension pipe
- 1/2“ snap on connector.
- Height:
Minimum: 660mm
Maximum: 980mm - The swan neck extension can be removed to and connect a hose directly to the pump.
No adaptor needed - hose can connect directly with hose clip.
- 1/2 inch Snap on hose connector
- Adjustable flow control tap feature
- Thermal overload protection
- Supplied complete with BS approved non-rewireable moulded plug and 10M (approx.) of cable.
- Pump diameter - approx 6 inches
- Supplied c/w an 8 inch extension piece.
Specification:
Max head height - 12M
Max operating depth - 8M
Max output - 40L/min
Maxi particle size - 3mm dia.
Overall height
(inc. ext. pipes) - 1.6M
Max head height - 12M
Max operating depth - 8M
Max output - 40L/min
Maxi particle size - 3mm dia.
Overall height
(inc. ext. pipes) - 1.6M
Technical:Instructions |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
DR WBP1A
Water Butt Submersible Pump |
