Wireless Combined Smoke and Heat Detector7291007256511ELMULTISMOKE

this detector work with both Secuplace & Infinite Alarm kits

ESKITSP3
ESKITSP3TRI
ESKITP
ESKITPWES/GSM
ESKITPWES/PET

Dimensions:
Diameter – 108mm
Height – 53mm

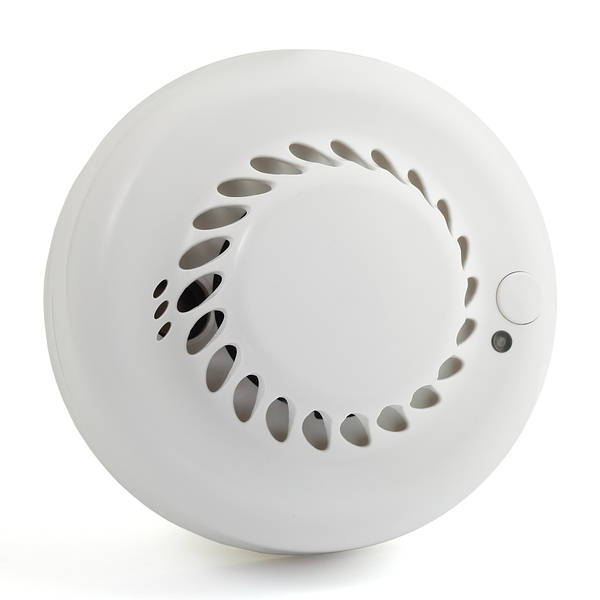

Wireless Combined Smoke and Heat Detector
RISCO’s ELMULTISMOKE Wireless Smoke and Heat Detector combines advanced technologies within a compact and streamlined design, the ideal choice for
homeowners seeking the highest safety standards.
Smoke is detected employing an advanced photoelectric chamber, while temperature is monitored with two separate heat sensors that measure the rate-of rise,
as well as the absolute temperature.
With a choice of selecting either smoke or heat detection or a combination the two, the Smoke and Heat Detector offers a more sensitive and dependable product for early detection of fire hazards in
different environments with a reduced risk of false alarms.

The Smoke Detector is EN14604:2005/AC:2008 certified, easy to install, and is
compatible with all RISCO Group’s 1 and 2-way wireless systems.

This product is new to the Electronics Line range and replaces the old Electronics Line Smoke Detector (ESEL2703)
  • Wireless, combined smoke and heat detection
  • Heat-only mode enables installing in harsh environments, such as kitchens or bathrooms
  • Earlier detection is achieved from fast temperate rate-of-rise before smoke is detected
  • Simple battery replacement performed by the customer
  • Two heat sensors measuring the fixed temperature and rate-of-rise provide accurate readings and high false-alarm immunity
  • Compatible with all RISCO Group’s 1 and 2-way wireless systems
  • Visual LED indicates alarms, standby mode, and low battery
  • Built-in test button activates the self-test and alarm-sounding
  • 85dB alarm sound
  • Powered by two CR123 3V lithium batteries (supplied)
  • Cover and wall tampers
  • Replacement Battery - PBCR123A
  • Smoke Detection - Photoelectric chamber
  • Heat Detection - Dual-sensor with fixed temperature and rate-of-rise
  • Certification - EN14604:2005/AC:2008
  • Operating Modes • Smoke + Heat (OR logic)
    Smoke only
    Heat only
  • Wireless RF Modes - Selectable 1-way or 2-way
  • Alarm Sound Leve - Exceeds 85dB at 3m (10’)
  • Typical Average Standby Current: 0.02mA typical
  • Typical Alarm Current - 100mA
  • Typical Battery Life - Typically 3 years
  • Battery Type - Two CR123 3V lithium batteries
  • Low Battery Threshold - 2.5 V
  • Low Battery Beep rate - One beep every 30 seconds
  • Low Battery Life - 30 days from warning signal
  • Colour - White

Technical:

MULTI Instructions - 400b pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

ES MULTI

Wireless Combined Smoke and Heat Detector

EA

£67.00

EA

£80.40
