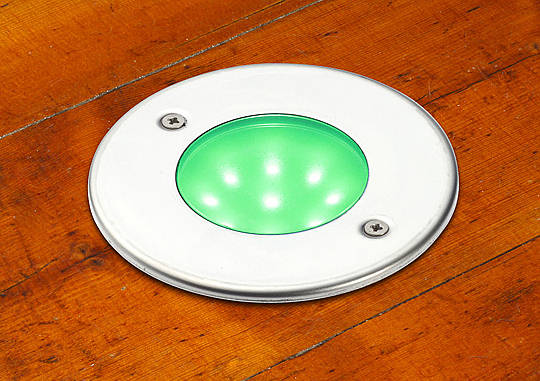

Walkover Light - 9 Green LEDs
Product Code: FL 1806G
5036797132841
1806Gn
Loading …
Face Plate: - 88mm
Hole Size: - 80 mm
Min Depth: - 85 mm
Hole Size: - 80 mm
Min Depth: - 85 mm
Walkover Light - 9 Green LED's
Ideal for outdoor use, pedestrian paths, driveways,
illumination of swimming pools under constant immersion (up to 3 metres deep). Rated IP68.
Suitable for the passage of vehicles. static pressure rating 1000kg.
- Supply voltage:24vDC,
- Absorbed power:1.2w,
- Use with FL1808 Transformer
A Maximum of 16 x 1806 may be linked using just one FL 1808 transformer. - A maximum cable run from one FL 1808 is 30 metres!
- If the transformer is being sited outside a weatherproof enclosure will be required - click on transformer code for suggestions
- Please note that the FL 1808 is not a standard transformer as it converts 240v AC into 24v DC not 240v AC into 12v AC like normal electronic transformers.
- Suitable Cables
Internal: 1mm 2 core Pvc flex
External: 1mm 2 or 3 core Rubber Flex
Please note external cables may need further protection depending on installation.
- Body and recessed housing in high resistance techno polymer.
- Ring is die-cast satined metal and is highly resistant to chemical and atmospheric agents.
- Light source is a Non Replaceable
9 LED Osram module:
Life approx 30,000 hrs - Wired in Parallel
Face Plate: - 88mm
Hole Size: - 80 mm
Min Depth: - 85 mm
Hole Size: - 80 mm
Min Depth: - 85 mm
Technical:Installation Instructions 280kb .pdf IP Rating Chart Wiring Information |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FL 1806G
Walkover Light - 9 Green LEDs |
