Box Strap Bracket
Product Code: FX BS
5070002784203
220514
Loading …
Watch VideoDimensions:
Length: 207mm
Width: 50mm
Depth: 34mm
Length: 207mm
Width: 50mm
Depth: 34mm

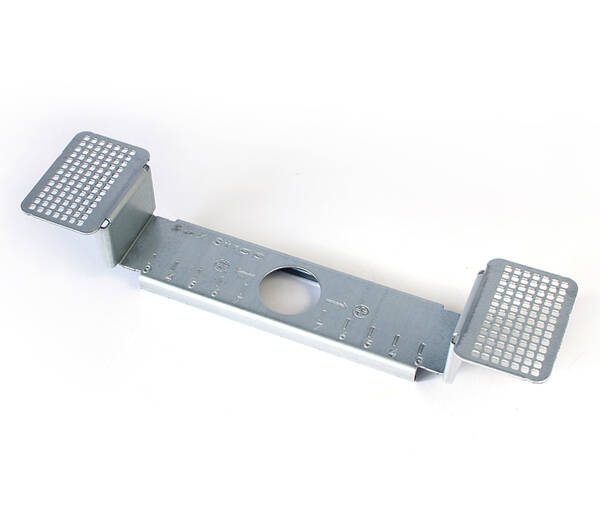

Box Strap Bracket
Opt for Box Strap Brackets to achieve a seamless finish when installing metal back boxes in plasterboard walls.
Benefits:
- Removes all the unwanted earth parallel paths during testing for an EIC
- Metal boxes allow you to have a flush finish every time
- You can now install a metal back box with both sides of the wall boarded
- Faster and smoother installation process
Benefits:
- Removes all the unwanted earth parallel paths during testing for an EIC
- Metal boxes allow you to have a flush finish every time
- You can now install a metal back box with both sides of the wall boarded
- Faster and smoother installation process
- Build baffle boxes with no clashes
- Close your walls without cutting around back boxes
- Pre-galvanised steel construction
- Steel specification: DX54 + Z100 to EN10346-2015
- Strength tested for single layer and double layer plasterboard
- Single layer (15mm) pull test: 40kg
- Double layer (30mm) pull test: 80kg
- Manufactured to ISO9001-2015
Watch VideoDimensions:
Length: 207mm
Width: 50mm
Depth: 34mm
Length: 207mm
Width: 50mm
Depth: 34mm
Technical:FXBS Datasheet - 200kb pdf FXBS Flyer - 3.4mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FX BS
Box Strap Bracket |
Fire Rated Putty Pad - Red
Loading …
Fire Rated Putty Pad
Red
Red
Protecta® FR Putty Pads are an easy to apply fire and sound rated sealant supplied as a non-setting putty. The pad is hand workable,
re-useable and re-serviceable due to its non-setting properties.
When electrical sockets and switches are installed in dry lining partitions, the original fire rating of the partition is compromised.
Protecta® FR Putty Pad reinstates the fire rating of the partition for up to two hours (depending on the partition fire rating) preventing the passage of smoke and flames in a fire, and sound and air movement during service life, through the electrical socket, into the cavity.
Protecta® FR Putty Pads are shaped for use on both single and double
electrical sockets installations in dry lining walls. The pads are supplied in a
cross shape for internal installation in a socket.
re-useable and re-serviceable due to its non-setting properties.
When electrical sockets and switches are installed in dry lining partitions, the original fire rating of the partition is compromised.
Protecta® FR Putty Pad reinstates the fire rating of the partition for up to two hours (depending on the partition fire rating) preventing the passage of smoke and flames in a fire, and sound and air movement during service life, through the electrical socket, into the cavity.
Protecta® FR Putty Pads are shaped for use on both single and double
electrical sockets installations in dry lining walls. The pads are supplied in a
cross shape for internal installation in a socket.
- For installation within the socket back box
- Tested in accordance with EN1366-3:2004
- Up to 120 minutes fire resistance in 100mm and 130mm gypsum board dry walls
Technical:Installation - 1mb pdf Safety Datasheet - 300kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Fire Rated Putty Pad 1 Gang - Red --- Price Drop --- |
|
|
Fire Rated Putty Pad 2 Gang - Red --- Price Drop --- |
