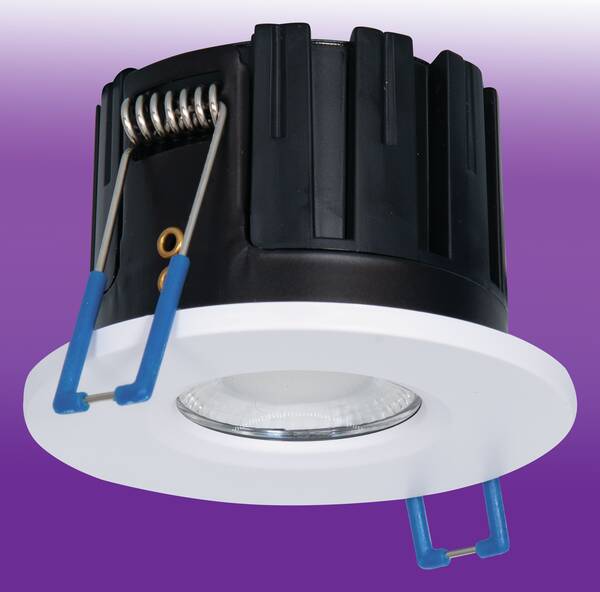

Firebreak QR Select Dual Pro 5W/7W 4CCT LED Downlight IP65 - White
Product Code: GL FRD386
5060499518238
KSRFRD386
Loading …
Hole size: 72mm
Width: 85mm
Depth: 54mm
Firebreak QR Select Dual Pro
5W/7W 4CCT LED Downlight IP65
White
5W/7W 4CCT LED Downlight IP65
White
The Firebreak QR Dual Pro Select is a quad CCT IP65 LED Downlight that is the perfect downlight solution for any area.

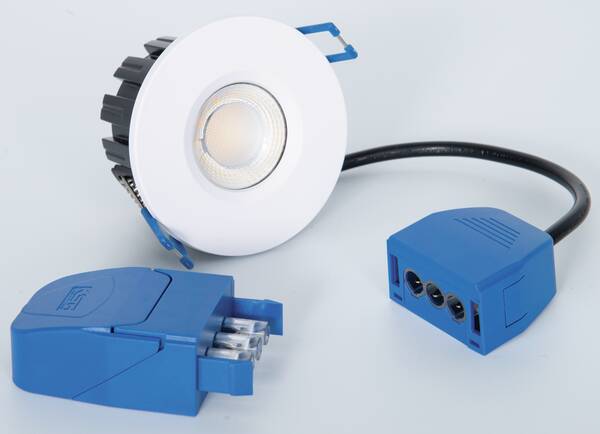

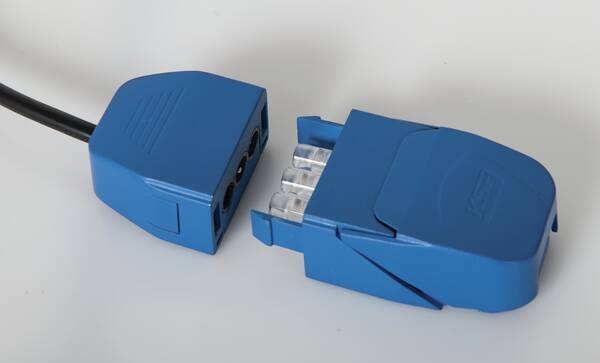

The new KSR Pro lever connector greatly speeds up every installation.
They come with Quad CCT functionality allowing you to change the colour kelvin with a flick of a
switch on the back of the luminaire removing the need to have multiple downlights for different areas.
Paired with the power selector switch allowing the wattage to be changed giving
8 different options in one downlight out of the box and is phase dimmable as standard.
The new KSR Pro lever connector greatly speeds up every installation.
They come with Quad CCT functionality allowing you to change the colour kelvin with a flick of a
switch on the back of the luminaire removing the need to have multiple downlights for different areas.
Paired with the power selector switch allowing the wattage to be changed giving
8 different options in one downlight out of the box and is phase dimmable as standard.
- Class I
- Rated: IP65
- 64° Beam angle
- 72mm Cut-out
- Pro connector
- 5-year warranty
- 30/60/90min fire rated with Solid timber joists
- 30min fire rated with I-Joist and Metal Web joists
- High efficiency LED array up to 128 lumens per circuit watt
- Switch between 2700K, 3000K, 4000K and 6000K
- CRI: Ra>84
- Switch between 5W or 7W
- Multiple colour rim options available
- Can be loosely covered in insulation
- L70/B10 – 54,000hrs
- Quick Fit plug and socket
Hole size: 72mm
Width: 85mm
Depth: 54mm
Technical:GLFRD386 Install pdf GLFRD386 Datasheet pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
GL FRD386
Firebreak QR Select Dual Pro 5W/7W 4CCT LED Downlight IP65 - White |
Firebreak QR Select Retrofit Ring
Loading …
GLFRD378 shown
Firebreak QR Select Retrofit Ring
The Firebreak QR range of Retrofit Rings are the perfect solution for retrofitting Firebreak QR downlights in any area, with 3 sizes available covering 90mm - 150mm cutouts & from 100mm - 170mm overall diameter.
For use with Firebreak QR downlights GLFRD385, 386 & 387.
N.B. Even though these are to be used with a fire & IP rated product,
it will no longer continue to be fire rated and only be IP20 rated.
For use with Firebreak QR downlights GLFRD385, 386 & 387.
N.B. Even though these are to be used with a fire & IP rated product,
it will no longer continue to be fire rated and only be IP20 rated.
- For use with Firebreak QR downlights GLFRD385, 386 & 387
- Non fire rated
- IP20 rated
- Aluminium body, white finish
- Plate supplied less fitting & bezel
Technical:Datasheet - 200kb pdf Instructions - 600kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
73mm Bi-Metal Holesaw --- Price Drop --- |
|
Mandrel for 32 to 152mm Holesaws --- Price Drop --- |
|
