Wireless Door & Gate Entry Kit & Tag Reader + KeyPad - 2 Dwellings
Product Code: LG LCP04U
3599430008139
LCP04U
Loading …
Dual dwelling unit
Anti-Vandal caller unit (2 button) + keypad coded access
Gate and door controller Powered by ac transformer A7901 (not included) or 4 x LR20 batteries (not included)
2 x Mobile handsets LCD screen (LCA01U) with rechargeable battery (Included)
Optional secondary controller/receiver LDG01 (230V), LDG02 (12-24V)
Option of up to 3 secondary handsets per dwelling LCA01U (handset-handset communication within dwelling possible)
Anti-Vandal caller unit (2 button) + keypad coded access
Gate and door controller Powered by ac transformer A7901 (not included) or 4 x LR20 batteries (not included)
2 x Mobile handsets LCD screen (LCA01U) with rechargeable battery (Included)
Optional secondary controller/receiver LDG01 (230V), LDG02 (12-24V)
Option of up to 3 secondary handsets per dwelling LCA01U (handset-handset communication within dwelling possible)
Hager Logisty
Wireless Door & Gate Entry Kit - 2 Dwellings
with Coded Access Key Pad
Wireless Door & Gate Entry Kit - 2 Dwellings
with Coded Access Key Pad
Portable phone for communication from house or garden to main entrance
No need to cable between house and gate
Remotely unlock front door
Remotely trigger gate controller
Trigger garage door and/or lighting (via accessory module)
Multiple handsets can be added
View status of door and gate via handset's display
Charger and rechargeable batteries for handset
Anti-vandal metal cover for external caller unit
-

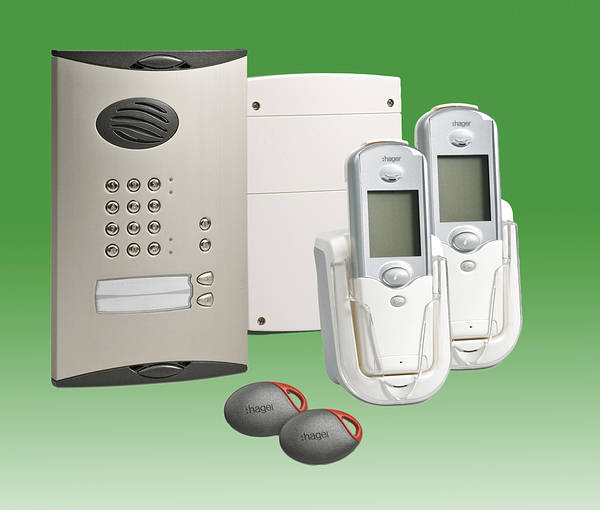

Kit comprises of:
Door caller point has 2 buttons to call 2 individual locations with keypad
Metal caller unit cover
2 Mobile handsets ( LG LCA01U )
with Li Ion rechargeable batteries
Mains operated charger
Gate and door controller
Controller uses four LR20 alkaline batteries( Not supplied ) life approx 4 years or main external supply (LG A7901 Not supplied) - Light or garage door control (with additional controller LDG01 or LDG02 )
- Up to 400m radio range in free field (100m typical)
- 2 way voice communication between internal handset and outdoor caller unit
- 3 year warranty ( 2 years standard, free extension to 3 years upon registration )
-
The outdoor unit
This is the outside element by which visitors announce and identify themselves. Placed at the gate or front door, the outside unit is both robust and discrete. - 4 digit access code can be used to operate system
- The controller Connected to the outdoor unit to which it supplies power and for which it makes radio transmissions, the controller is fitted inside the building or garden within 2 or 3 meters usually on the same pillar as the electric latch. It directly controls any 12 V latch or an electric lock.
- The indoor handset unit
Allows the user to identify visitors and to control the opening of doors and gates, and to verify their status, open or closed on the LCD display. It is composed of a cordless handset and a base unit.
Dual dwelling unit
Anti-Vandal caller unit (2 button) + keypad coded access
Gate and door controller Powered by ac transformer A7901 (not included) or 4 x LR20 batteries (not included)
2 x Mobile handsets LCD screen (LCA01U) with rechargeable battery (Included)
Optional secondary controller/receiver LDG01 (230V), LDG02 (12-24V)
Option of up to 3 secondary handsets per dwelling LCA01U (handset-handset communication within dwelling possible)
Anti-Vandal caller unit (2 button) + keypad coded access
Gate and door controller Powered by ac transformer A7901 (not included) or 4 x LR20 batteries (not included)
2 x Mobile handsets LCD screen (LCA01U) with rechargeable battery (Included)
Optional secondary controller/receiver LDG01 (230V), LDG02 (12-24V)
Option of up to 3 secondary handsets per dwelling LCA01U (handset-handset communication within dwelling possible)
Technical:Installer Guide - pdf 6.4Mb All about the Range - pdf 1.2Mb User Guide - pdf 2.6Mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
LG LCP04U
Wireless Door & Gate Entry Kit & Tag Reader + KeyPad - 2 Dwellings |
