LED Fire Rated Downlight - Dimmable - IP66 - Warm White (Discontinued)

Please try Ledlite LED Downlights IP65 & IP66 Fire Rated for alternative products.

LED Fire Rated Downlight - Dimmable - IP66 - Warm White5055800102190LTCFD12WW

Loading …

@ 8 Hours a Day / Elec Unit 16p
105kw per year
£16.90 per fitting

Use with a dimmer for even greater savings

Benefit from increased light output or use fewer fittings

Fast return on investment.

Immediate cost saving.

Silent trailing edge LED dimmers:
available in most finishes
White & Grid Dimmers

Other Finishes

Does not dim with Quinetic Dimmers
LED Fire Rated Downlight - Dimmable - IP66
Warm White
with Emergency Backup Plug & Socket
IP66 for Shower Rooms and Fire Rated
Dimmable, Flexible Cut-Out Sizes.

LEDLITE test the ‘Absolute Photometry’ of the complete fitting.
We believe that independent testing is the only solution to resolve
the current trend for publishing unverified and misleading LED Specifications.

LEDlite publish the exact light output details of our fittings,
which are confirmed by independent 3rd party test houses, including the Photonics
These files are available to download

Limited Stock at Branches Next Day Delivery
  • Wattage 13.8w
  • Beam Angle: 50°
  • Colour: Warm White - 3100K
  • IP66 as standard
  • Bathroom zone: 1
  • Fire rated - for 30, 60 & 90 min ceilings
  • 100% dimming control - Silent trailing edge LED dimmers or approved quality dimmer
  • 90% energy saving (non dim)
  • Dimensions: Ø 87 (Bezel)
  • Min depth: 135mm Inc Driver
  • Cut-out Ø: 64-70mm

    Optional Plate to Fit Holes up to 150 mm
  • Interchangeable Bezel
    Choice of colours and finishes
    Square bezel
    Drop glass bezel
    Adjustable tilt bezel (not fire rated)
  • Brighter than a 50W GU10 Halogen @ 360lm
  • CFD12WW Warm White @ 930 lumen output
    Benefit from increased light output or use fewer fittings
  • Integrated LED driver. (flexible connection) with Flying Lead Direct to Mains Connection
  • Flexibility during installation
    6-35mm ceiling thickness
    2 position retaining clips
    1 Plasterboard Ceilings 6-35mm. (fitted)
    2 Office Ceiling Tiles
  • Meets building regulations
    Part B, C, E & L compliance
  • Reduced installation time
  • Double insulated
    No earthing required
  • Surpasses energy and efficacy requirements for part L
  • Immediate cost saving
  • Soft start
  • Increased safety in vulnerable environments
  • CRI. >80
  • Guarantee 3 years


CFD Downlight Data Sheet 1.2Mb pdf
Product Code
Price (ex VAT)
Price (inc VAT)

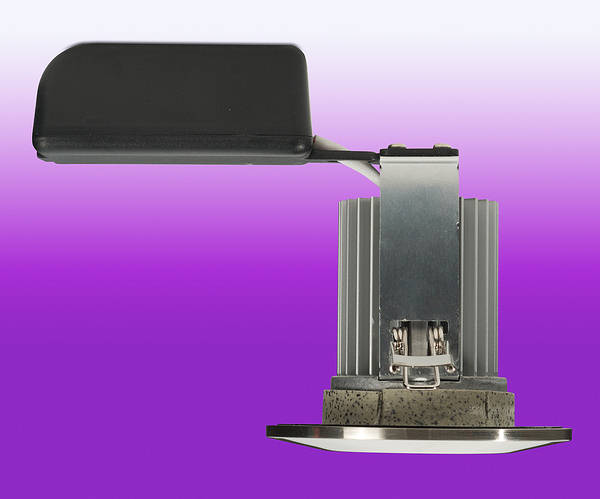

product photo

LED Fire Rated Downlight - Dimmable - IP66 - Warm White
