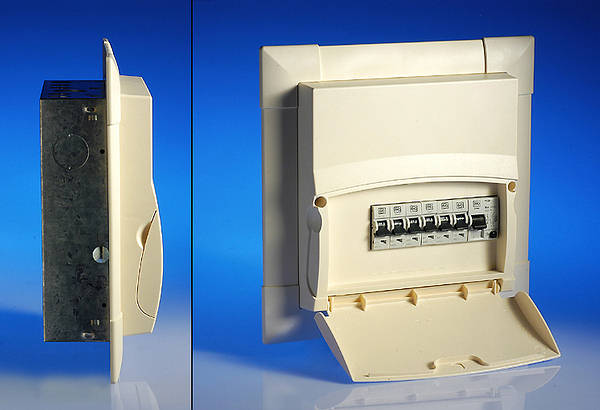

8 Way Metal Enclosure Flush - for up to 6 MCBs
Product Code: MK 6508
5017490189424
K6508SMAG
Loading …
DIMENSIONS: K6508s
234 x 230 x 106.5mm
(width x height x depth)
Flush frame adds 38mm per side to the unit
WALL CAVITY DIMENSIONS: K6508s
245 x 235 x 68mm
(width x height x depth (min))
Depth of flush consumer unit visible on wall: 50mm
MK Sentry
8 Way Metal Enclosure Flush
8 Way Metal Enclosure Flush
8 One Module Products
or 1 Two Module ( Main Switch or RCD ) Not Included
and 6 One Module Products
C/w 1 x Integral Neutral Bar
Flush Mounting
- All units feature a tough galvanised metal box for insertion into the wall cavity, which can be secured at the rear or panel-mounted using the brackets supplied.
- The DIN rail embodies a useful alignment adjusting mechanism to make for a speedy installation. The units have an impact resistant, flame retardant, thermoplastic cover, lid and a flush moulded frame is supplied to overlap the exposed cavity to produce a smooth line between unit and wall.
- Degree of protection to BS EN 60529 to IP2X C.
- Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts.
- BS EN 60439-3: 1991/A1: 1994.
- Cover mounted blanks are supplied with ALL consumer units
(2 off for 4, 8 and 12 module and
4 off for 16 and 21 module)
DIMENSIONS: K6508s
234 x 230 x 106.5mm
(width x height x depth)
Flush frame adds 38mm per side to the unit
WALL CAVITY DIMENSIONS: K6508s
245 x 235 x 68mm
(width x height x depth (min))
Depth of flush consumer unit visible on wall: 50mm
Technical:IP Rating Chart Full Details and Specification |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
MK 6508
8 Way Metal Enclosure Flush - for up to 6 MCBs |
MK Sentry MCB's ( Type C )
Loading …
New Version Replaces Image 2
Previous Version
MK Sentry MCB's ( Type C )
Technical:Datasheet - 1.67mb pdf MCB Selection MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Std MCBs for MK Sentry S Boards
Loading …
See product for Accessories
MK Sentry MCB's ( Type B )
Sentry MCB detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
| See product for Accessories |
Technical:Datasheet - 1.67mb pdf MCB Selection MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6 Amp MK MCB - B Curve Special Offer |
|
10 Amp MK MCB - B Curve Special Offer |
|
16 Amp MK MCB - B Curve Special Offer |
|
20 Amp MK MCB - B Curve Special Offer |
|
32 Amp MK MCB - B Curve Special Offer |
|
45 Amp MK MCB - B Curve Special Offer |
|
Blanks
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
