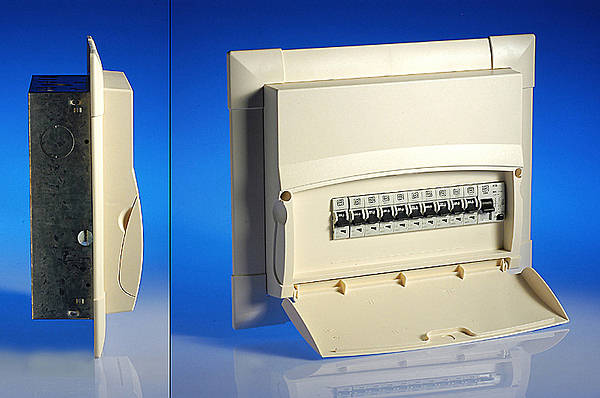

12 Way Metal Enclosure Flush - for up to 10 MCBs5017490371959K6512SMAG
Supplied less MCB's / Mains Switch
DIMENSIONS: K6512s 306 x 230 x 106.5mm (width x height x depth)
Flush frame adds 38mm per side to the unit
WALL CAVITY DIMENSIONS: K6512s 315 x 235 x 68mm (width x height x depth (min))
Depth of flush consumer unit visible on wall: 50mm
MK Sentry 12 Way Metal Enclosure Flush - for up to 10 MCB s
Accepts 12 One Module Products or 1 Two Module ( Main Switch or RCD ) Not Included and 10 One Module Products C/w 2 x Integral Neutral Bars - Linked Flush Mounting
All units feature a tough galvanised metal box for insertion into the wall cavity, which can be secured at the rear or panel-mounted using the brackets supplied.
The DIN rail embodies a useful alignment adjusting mechanism to make for a speedy installation. The units have an impact resistant, flame retardant, thermoplastic cover, lid and a flush moulded frame is supplied to overlap the exposed cavity to produce a smooth line between unit and wall.
Degree of protection to BS EN 60529 to IP2X C.
Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts.
BS EN 60439-3: 1991/A1: 1994.
Cover mounted blanks are supplied with ALL consumer units (2 off for 4, 8 and 12 module and 4 off for 16 and 21 module)
