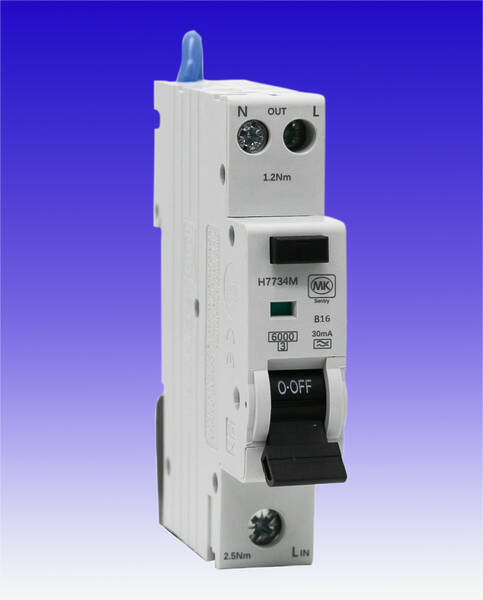

MK Sentry Miniature Bi-directional RCBO with Type A RCD

The MK Sentry range features neutral switched type double pole RCBOs in one module format. The single module RCBOs are a combination of a Type B/C MCB and a Residual Current Device. This enables both overcurrent protection and earth fault current protection to be provided by a single unit. Miniature RCBOs are bi-directional for PV and EV installations.

This combination allows earth fault protection to be restricted to a single circuit, thus ensuring that only the circuit with the fault is interrupted (when groups of circuits are protected by an RCD, all circuits would be interrupted under fault conditions,
which may cause unnecessary inconvenience).

The operating switch on all MK Sentry RCBOs may be locked in either the ON or OFF position
without affecting the ability of the trip mechanism to operate.

MK Sentry RCBOs feature tunnel terminals of generous capacity, with 25mm² for live supply terminals and 10mm² for live
and neutral load terminals. The neutral supply (blue) is provided via flying lead.
