Mk Sentry Contactors
Loading …
New Version replaces Image 2
Previous Version

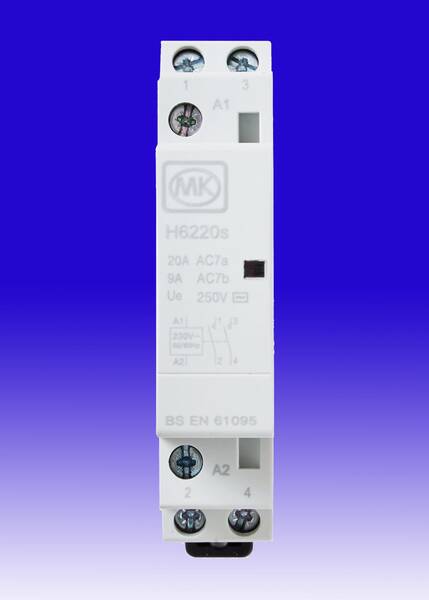

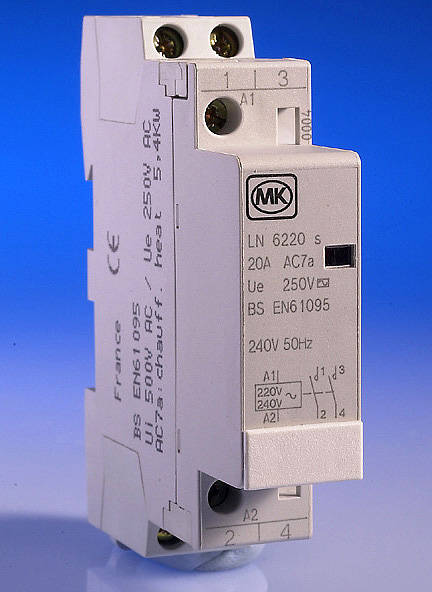

MK Sentry Contactors
In this regard, they are particularly useful for switching heating, lighting and ventilation circuits. in particular when used in conjunction with off-peak supply tariffs.
Technical:MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

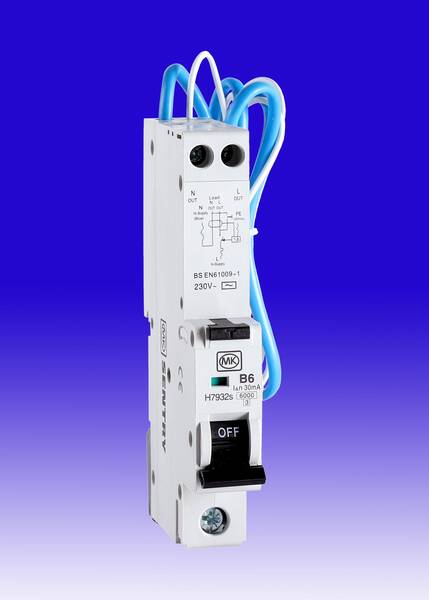

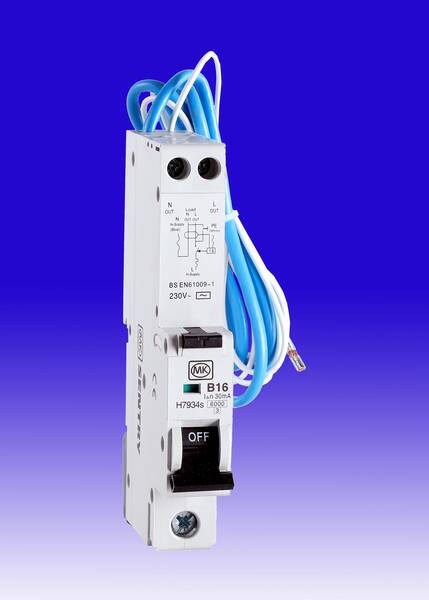

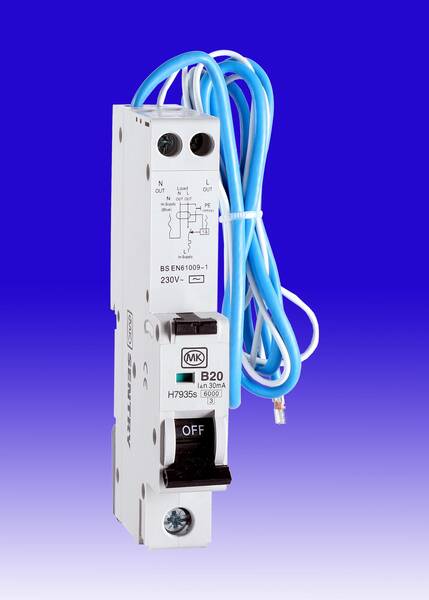

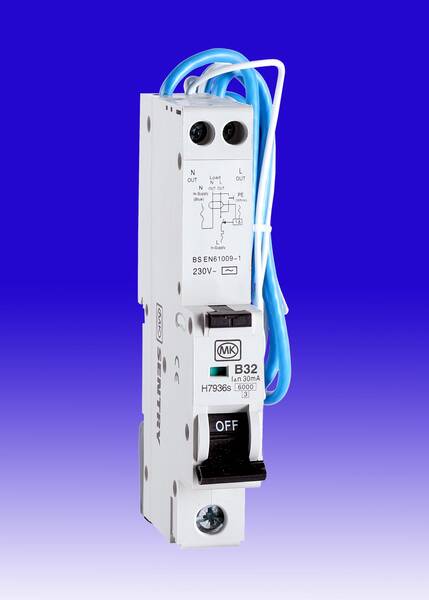

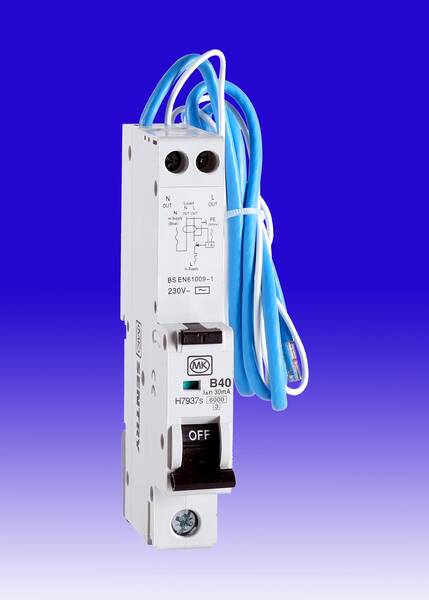

MK Sentry RCBOs Type AC - 7900 series
Loading …
New Version Replaces Image 2
Previous Version
See product for Accessories

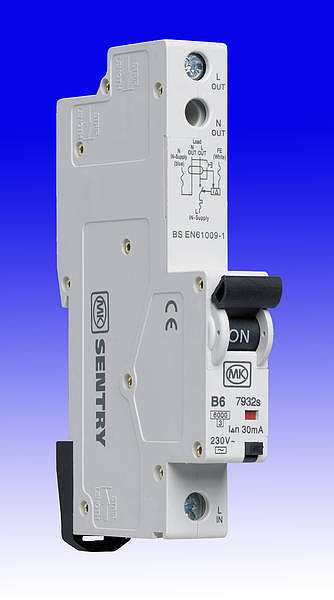

MK Sentry RCBOs - 7900 series
Type AC - B Curve
Type AC - B Curve
This enables both overcurrent protection and earth fault current protection by a single unit.
Single module Sentry RCBOs may be installed anywhere along the length of the busbar and will occupy one outgoing way.
They are suitable also for installation in Sentry Consumer Units and in Sentry two or four module enclosures.
The current carrying capacity of the cable should always exceed the current rating of the MCB.
| See product for Accessories |
Technical:RCBO Datasheet - 320kb pdf MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
MK Sentry RCBOs Type A - 6800 series
Loading …
Type AC Shown
MK 6834S
MK 6835S
MK 6836S
MK 6837S
MK 6838S
See product for Accessories
MK Sentry RCBOs - 6800 series
Type A - B Curve
Type A - B Curve
This enables both overcurrent protection and earth fault current protection by a single unit.
Single module Sentry RCBOs may be installed anywhere along the length of the busbar and will occupy one outgoing way.
They are suitable also for installation in Sentry Consumer Units and in Sentry two or four module enclosures.
The current carrying capacity of the cable should always exceed the current rating of the MCB.
| See product for Accessories |
Technical:RCBO Datasheet - 320kb pdf MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
|
10A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
16A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
20A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
32A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
40A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
50A 30mA RCBO - MK (Type A) B Curve --- Price Drop --- |
|
MK Sentry Compact RCBOs - Type A - B Curve - Bi-directional
Loading …
See product for Accessories
MK Sentry Compact RCBOs
Type A - B Curve
Bi-directional
Type A - B Curve
Bi-directional
MK Sentry Miniature Bi-directional RCBO with Type A RCD
The MK Sentry range features neutral switched type double pole RCBOs in one module format. The single module RCBOs are a combination of a Type B/C MCB and a Residual Current Device. This enables both overcurrent protection and earth fault current protection to be provided by a single unit. Miniature RCBOs are bi-directional for PV and EV installations.
This combination allows earth fault protection to be restricted to a single circuit, thus ensuring that only the circuit with the fault is interrupted
(when groups of circuits are protected by an RCD, all circuits would be interrupted under fault conditions,
which may cause unnecessary inconvenience).
The operating switch on all MK Sentry RCBOs may be locked in either the ON or OFF position
without affecting the ability of the trip mechanism to operate.
MK Sentry RCBOs feature tunnel terminals of generous capacity, with 25mm² for live supply terminals and 10mm² for live
and neutral load terminals. The neutral supply (blue) is provided via flying lead.
The MK Sentry range features neutral switched type double pole RCBOs in one module format. The single module RCBOs are a combination of a Type B/C MCB and a Residual Current Device. This enables both overcurrent protection and earth fault current protection to be provided by a single unit. Miniature RCBOs are bi-directional for PV and EV installations.
This combination allows earth fault protection to be restricted to a single circuit, thus ensuring that only the circuit with the fault is interrupted
(when groups of circuits are protected by an RCD, all circuits would be interrupted under fault conditions,
which may cause unnecessary inconvenience).
The operating switch on all MK Sentry RCBOs may be locked in either the ON or OFF position
without affecting the ability of the trip mechanism to operate.
MK Sentry RCBOs feature tunnel terminals of generous capacity, with 25mm² for live supply terminals and 10mm² for live
and neutral load terminals. The neutral supply (blue) is provided via flying lead.
| See product for Accessories |
Technical:Mini RCBO Datasheet - 1.13mb pdf MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

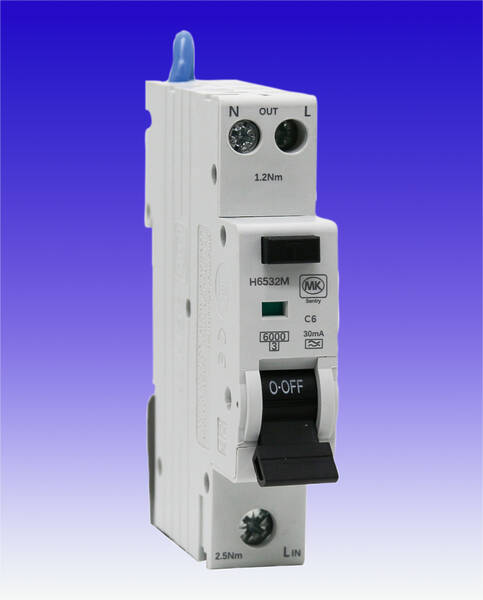

MK Sentry Compact RCBOs - Type A - C Curve - Bi-directional
Loading …
See product for Accessories
MK Sentry Compact RCBOs
Type A - C Curve
Bi-directional
Type A - C Curve
Bi-directional
MK Sentry Miniature Bi-directional RCBO with Type A RCD
The MK Sentry range features neutral switched type double pole RCBOs in one module format. The single module RCBOs are a combination of a Type B/C MCB and a Residual Current Device. This enables both overcurrent protection and earth fault current protection to be provided by a single unit. Miniature RCBOs are bi-directional for PV and EV installations.
This combination allows earth fault protection to be restricted to a single circuit, thus ensuring that only the circuit with the fault is interrupted
(when groups of circuits are protected by an RCD, all circuits would be interrupted under fault conditions,
which may cause unnecessary inconvenience).
The operating switch on all MK Sentry RCBOs may be locked in either the ON or OFF position
without affecting the ability of the trip mechanism to operate.
MK Sentry RCBOs feature tunnel terminals of generous capacity, with 25mm² for live supply terminals and 10mm² for live
and neutral load terminals. The neutral supply (blue) is provided via flying lead.
The MK Sentry range features neutral switched type double pole RCBOs in one module format. The single module RCBOs are a combination of a Type B/C MCB and a Residual Current Device. This enables both overcurrent protection and earth fault current protection to be provided by a single unit. Miniature RCBOs are bi-directional for PV and EV installations.
This combination allows earth fault protection to be restricted to a single circuit, thus ensuring that only the circuit with the fault is interrupted
(when groups of circuits are protected by an RCD, all circuits would be interrupted under fault conditions,
which may cause unnecessary inconvenience).
The operating switch on all MK Sentry RCBOs may be locked in either the ON or OFF position
without affecting the ability of the trip mechanism to operate.
MK Sentry RCBOs feature tunnel terminals of generous capacity, with 25mm² for live supply terminals and 10mm² for live
and neutral load terminals. The neutral supply (blue) is provided via flying lead.
| See product for Accessories |
Technical:Mini RCBO Datasheet - 1.13mb pdf MK Sentry Catalogue - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

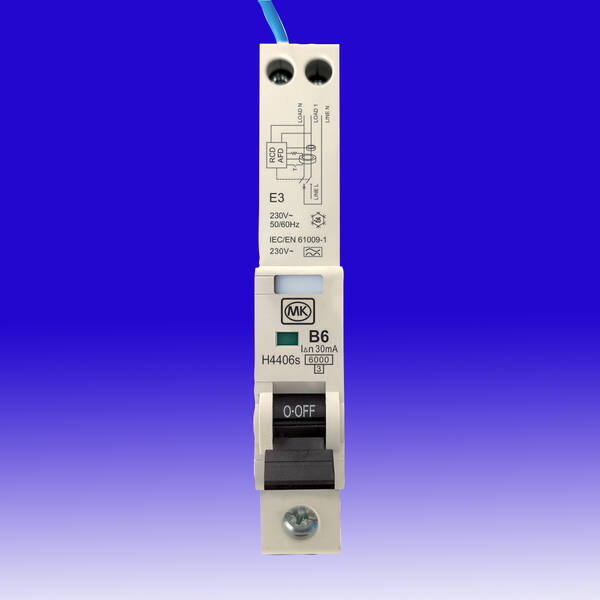

MK Sentry - DP AFDD Type A - 6KA
Loading …
MK Sentry
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
Arc Fault Detection Device combined with RCBO (AFDD).
MK SENTRY AFDDs provide protection against fires caused by electrical arcing resulting from faulty wiring or poor connections.
The AFDD analyses curent/voltage characteristics to identify arcing and automically trip to isolate the circuit.
AFDDs detect arcing faults which can be undetected by MCBs and RCDs.
Types of arc fault:
Series arc fault, in-line conductor caused by;
- Loose connections
- Damaged cables (broken, crushed, worn)
- Rodent damage
Parallel arc fault, between live conductors, L-N and L-E undected by MCB/RCD resulting from;
- Damaged insulation
- Pierced insulation (power tools, nails etc)
- Rodent damage
- Poor wiring/damaged appliance plugs
Product Standard: BS EN62606, BS EN61009-1.
MK SENTRY AFDDs provide protection against fires caused by electrical arcing resulting from faulty wiring or poor connections.
The AFDD analyses curent/voltage characteristics to identify arcing and automically trip to isolate the circuit.
AFDDs detect arcing faults which can be undetected by MCBs and RCDs.
Types of arc fault:
Series arc fault, in-line conductor caused by;
- Loose connections
- Damaged cables (broken, crushed, worn)
- Rodent damage
Parallel arc fault, between live conductors, L-N and L-E undected by MCB/RCD resulting from;
- Damaged insulation
- Pierced insulation (power tools, nails etc)
- Rodent damage
- Poor wiring/damaged appliance plugs
Product Standard: BS EN62606, BS EN61009-1.
Technical:AFDD/RCBO Datasheet - 380kb pdf MK Sentry Catalogue - 1.5mb pdf |
|
