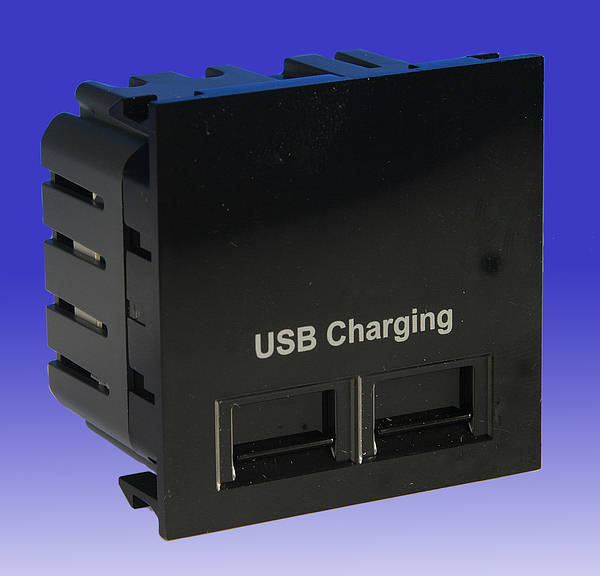

MK USB Charging Module Black
Euro Data Coms Module
Features 2 charging sockets each delivering 1A charging current at 5Vdc (total 2A max).
Twin USB Outlets.
Compatible with USB 2.0 and USB 3.0 (power pin) standard A plugs.
Output current can be delivered to either outlet or shared between the two (under the control of the connected devices).
Zero standby (mains supply only connected when either shutter is opened to insert a plug).
Large terminal capacity (3 x 2.5mm2) suitable for direct wiring to ring main.
2a output capable of charging tablets at maximum rate.
Overload and short circuit protected output.
SELV safety isolation between input and output.
Compatible with all MK range Euro mounting frames.
Voltage: 220 240V (range 180 275v)
- Frequency: 50 60hZ (range 47 63hz)
- Standby Power: 0W (mains supply is only connected when either shutter is opened to insert a USB lead)
Voltage: 5V +/- 5%
- Voltage Ripple: <50mV pk-pk
- Current: 2A
