MK USB Charging Module White - Euro Data Coms Module5017490625823K5837WHI

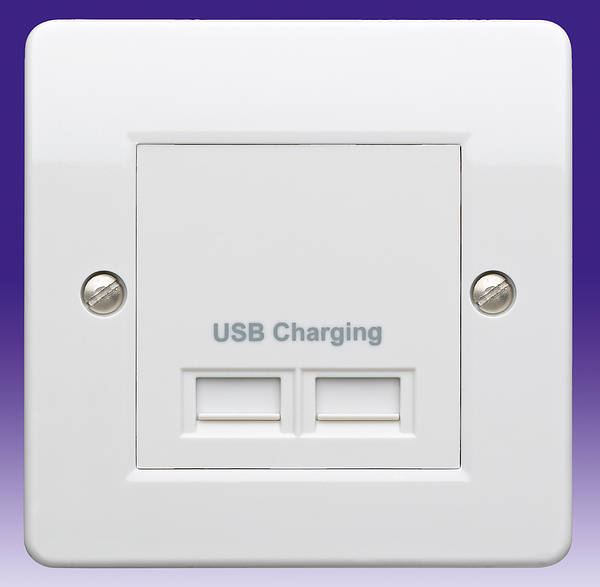

Shown fitted to data plate

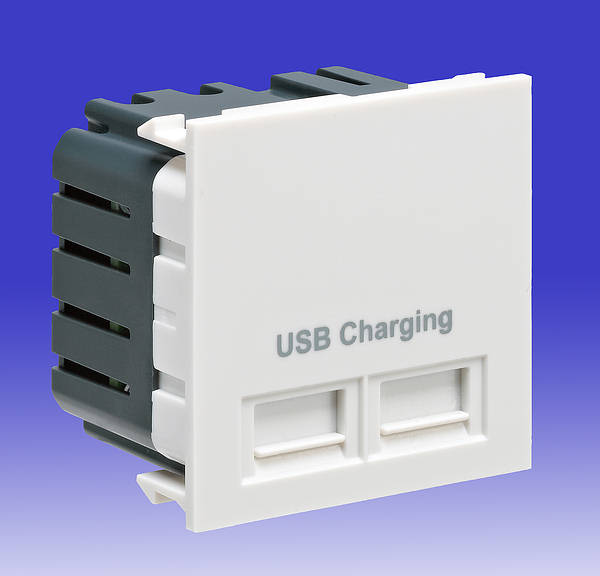

USB Charging Module White
Euro Data Coms Module
Features 2 charging sockets each delivering 1A charging current at 5Vdc (total 2A max).

Twin USB Outlets.
Compatible with USB 2.0 and USB 3.0 (power pin) standard A plugs.
Output current can be delivered to either outlet or shared between the two (under the control of the connected devices).
Independent shutters.
Zero standby (mains supply only connected when either shutter is opened to insert a plug).
Large terminal capacity (3 x 2.5mm2) – suitable for direct wiring to ring main.
2a output – capable of charging tablets at maximum rate.
Overload and short circuit protected output.
SELV safety isolation between input and output.
Compatible with all MK range Euro mounting frames.
  • Voltage: 220 – 240V (range 180 – 275v)
  • Frequency: 50 – 60hZ (range 47 – 63hz)
  • Standby Power: 0W (mains supply is only connected when either shutter is opened to insert a USB lead)
  • Voltage: 5V +/- 5%
  • Voltage Ripple: <50mV pk-pk
  • Current: 2A

Technical:

USB Charging Module Specification

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

MK K5837W

MK USB Charging Module White - Euro Data Coms Module New

EA

£25.15

EA

£30.18
