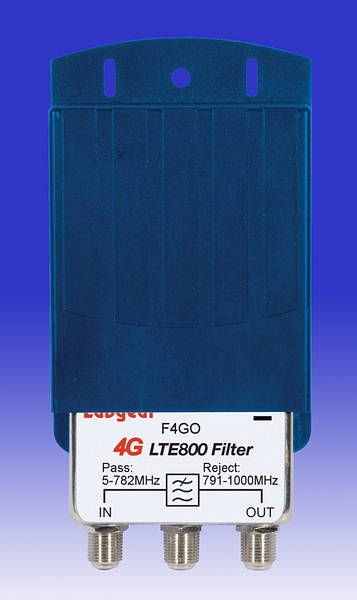

4G Filter with Weatherproof Housing
Product Code: MX F4GO
5050171057926
F4GO
Loading …
ideal for masthead mounting.
120mm x 70mm x 27 mm
4G Filter
with Weatherproof Housing
with Weatherproof Housing
Fact: The UK Digital Switchover was planned to clear frequencies for future technologies between Ch63 – 68.
But in 2008 the standard for 4th Generation Long Term Evolution (4G LTE800) devices was agreed which used Ch61 and 62.
This has created a very tight space for these new technologies and a higher risk of interference.
Fact: Ofcom estimate that almost 10% of homes (2.4Million) will be affected by interference to their DTT reception
because they are close to a mobile mast carrying 4G and are either:
Receiving DTT on Ch59 or 60 and getting adjacent channel interference (approx 37%)
or they have a UHF amplifier (or 5-wire multi-switch) in their TV system (approx 63%)
Fact: To prevent interference from 4G LTE800 transmitters:
You need a filter with a sharp cross-over from the pass-band to the stop-band
You need a filter with VERY high rejection across the whole 4G LTE800 frequency range
Labgear 4G filters have been specifically designed to meet the above requirements.
They pass signals in the 462-782MHz range and reject signals across 791-862MHz range with an average rejection level of -55dB.
- Removes TV interference caused by 4G mobile phone signals
- Removes TV interference and channel loss caused by 4G mobile phone signals
- Simply plug in between the aerial and TV or set top box
- F connectors
- Technical Spec:
- Removes TV interference caused by 4G mobile phone signals
- Pass band: 5 - 782MHz <= 4.5dB
- Filter band (rejection) 791 - 1000 MHz => 16dB
- Input impedance 75 Ohm
- Output impedance 75 Ohm
ideal for masthead mounting.
120mm x 70mm x 27 mm
Technical:Instructions - FV400 - 840kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
MX F4GO
4G Filter with Weatherproof Housing |
