2-Way Orange Above Ground Box Size 10Pratley 08044
Loading …
Order connectors to suit the size of cable being joined
TL CON30
1.5mm 2,3 or 4 core SWA
2.5mm 2,3 or 4 core SWA
4.0mm 2 core SWA
PR CON 2
4.0mm 3 or 4 core SWA
6.0mm 2,3 or 4 core SWA
10mm 2, or 3 core SWA
TL CON30
1.5mm 2,3 or 4 core SWA
2.5mm 2,3 or 4 core SWA
4.0mm 2 core SWA
PR CON 2
4.0mm 3 or 4 core SWA
6.0mm 2,3 or 4 core SWA
10mm 2, or 3 core SWA

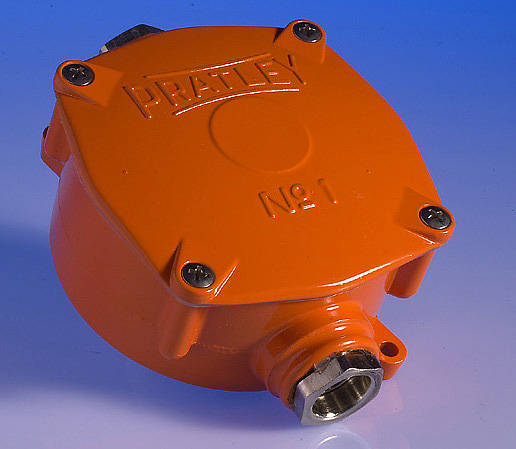

Pratley Above Ground
2 Way / Through - Cable Joint
2 Way / Through - Cable Joint
- A range of aluminium boxes for use above ground without the need of filling compounds or resins.
- Lightweight corrosion resistant alloy with epoxy resin coating.
- These boxes are dust / watertight to IP68.
- Allows cables to be added or removed after installation has been completed.
- Allows the box to be used for circuit testing.
- To Suit Cable Sizes
- 6.0mm 4 core SWA
- 10mm 2 or 3 core SWA
- To join one of the above cable sizes with a smaller cable than above a reducing gland is required
- Order connectors to suit the size of cable being joined
- TL CON30
- 1.5mm 2,3 or 4 core SWA
- 2.5mm 2,3 or 4 core SWA
- 4.0mm 2 core SWA
- PR CON 2
- 4.0mm 3 or 4 core SWA
- 6.0mm 2,3 or 4 core SWA
- 10mm 2, or 3 core SWA
Technical:IP Rating Chart |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
|
PR ABX12 | 2-Way Orange Above Ground Box Size 1 |
|
|
Connectors with Sleeves
Loading …
Pratley - Joint Box Accessories
Connectors with Sleeves
Connectors with Sleeves
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PR CON2 | Connector and Sleeve No2 |
|
|
|||||||||
 |
PR CON3 | Connector and Sleeve No3 |
|
|
|||||||||
 |
PR CON4 | Connector and Sleeve No4 |
|
|
|||||||||
|
PR CON5 | Connector and Sleeve No5 |
|
|
|||||||||
|
PR SL4 | Spare Sleeve Only for PR Con 4 |
|
|
Accessories and Connectors
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WA 173 | Wago 773-173 Push Wire Connector 2.5mm - 6.0mm 3 Way |
|
|
|||||||||
 |
TL CON30 | 30 Amp Connector Strip |
|
|
