PR CON4 25mm 3 or 4 core SWA 35mm 2 or 3 core SWA 50mm 2 core SWA
PR CON5 70mm 2 core SWA

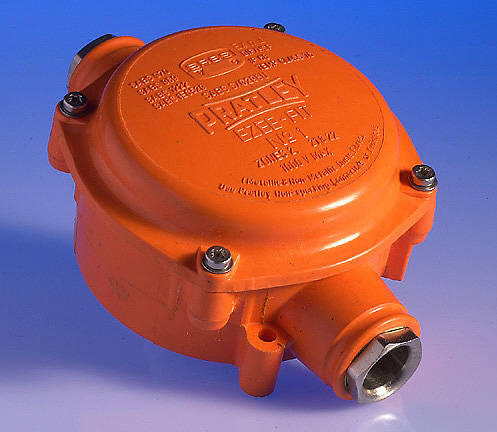

2 Way / Through - Cable Joint
Supplied complete with cable glands and shrouds
PRATLEY UNDERGROUND joint boxes are quick and easy to fit with earth continuity assured by means of the unique integral gland. They are dust / waterproof, with inner seals in the glands and an 'o' ring gasket in the lid and need not be compound filled.
Made of tough reinforced plastic, non-corrosive. Ideal for burying as the only exposed metal is the stainless steel screws. The domed lid allows the connections of the cables to be done outside the confines of the box making it quick and easy to fit.
Substantially reduces installation time.
Eliminates the necessity of jointing compound.
Meets the requirements of IP 68.
Allows cables to be added or removed after installation has been completed.
Allows the box to be used for circuit testing.
To Suit Cable Sizes
25mm 4 core SWA
35mm 3 or 4 core SWA
50mm 2 or 3 core SWA
70mm 2 core SWA
To join one of the above cable sizes with a smaller cable than above a reducing gland is required
Order connectors to suit the size of cable being joined
