Quickwire
T-Connector Plug and Socket
T-Connector Plug and Socket

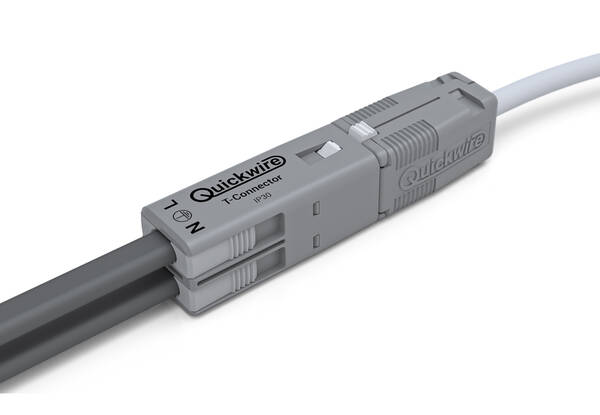

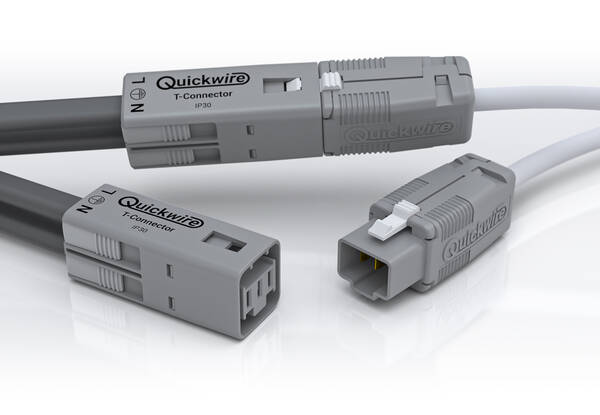

The Quickwire T-Connector is a 3 pole plug and socket: The plug accepts flexible cable and the socket consists of two rapid fit Quickwire solid core twin and earth, loop in loop out connections.
The T-Connector offers the same dramatic time-savings and ease of use as all Quickwire junction boxes
and is perfect for use in conjunction with downlighters.
Manufactured in the UK.
The T-Connector offers the same dramatic time-savings and ease of use as all Quickwire junction boxes
and is perfect for use in conjunction with downlighters.
Manufactured in the UK.
-
Dramatic time saving on site with rapid Quickwire™
push-fit technology - Compact – fits through a 30mm diameter hole

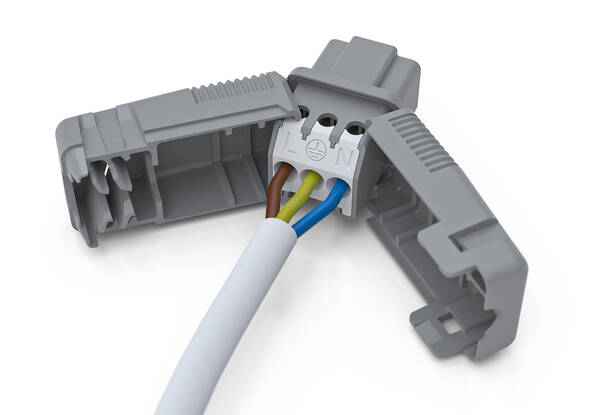

- Plug Specifications:
- Supply voltage: 250V, 16A (Overcurrent protection limited to 16A)
- Poles: 3 pole
- Cable entry: 1 x Flexible (Class 5/6 conductors) or 1 x Rigid (Class 1 conductors)
- Termination: Screw terminals
- Cord Grip size: Max. 8.0mmØ Min. 4.0mmØ
- Conductor Size: 0.5mm² – 1.5mm²
- IP Rating: IP20 (when plugged in)
- Easy disconnection for maintenance and testing
- One piece plug moulding simply snaps shut with cord grip
- Socket Specifications:
- Supply voltage: 250V, 16A (Overcurrent protection limited to 16A)
- Poles: 3 pole
- Cable entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC Cable
(6242Y or 6242B), Solid cores (Class 1)

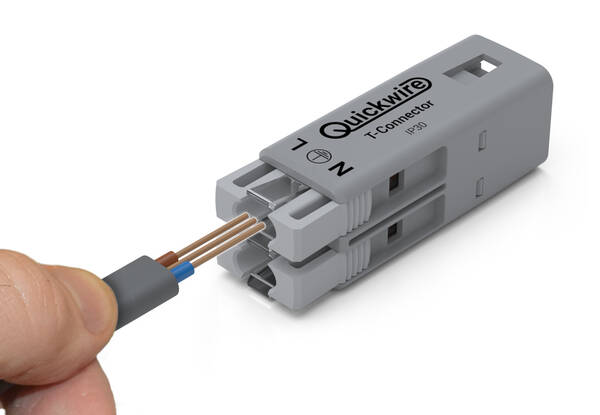

- Termination: Utilises rapid Quickwire™ push-fit technology
- Cord Grip size: Fully automatic
- Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores, Class 1 (conductors)
- IP Rating: IP30
Technical:QuickWire Brochure - 1.75mb pdf QWTPS3 Datasheet - 1.3mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
QW TPS3
Quickwire T-Connector Plug and Socket |
