160mm In-Line Loft Extractor Fan
Product Code: SL CAB160
8413893112019
UPA160
Loading …
Fan size: - 140 / 059
Speed (RPM): - 2350
Motor power (W): - 100
Current at 220 V (A): - 0,80
Duty at free discharge (m3/h): - 390
Sound pressure level
(36dB (A) at 1,5 m):
Outlet: - 59.5
Inlet: - 39.5
Radiated: - 40
Weight (kg): - 18
Speed (RPM): - 2350
Motor power (W): - 100
Current at 220 V (A): - 0,80
Duty at free discharge (m3/h): - 390
Sound pressure level
(36dB (A) at 1,5 m):
Outlet: - 59.5
Inlet: - 39.5
Radiated: - 40
Weight (kg): - 18
Soler & Palau
160mm In-Line loft extractor Fans
Acoustic Cabinet Fans - CAB Series
160mm In-Line loft extractor Fans
Acoustic Cabinet Fans - CAB Series
and lined with extra thick acoustic foam to minimise radiated and inlet noises.
The compact design and low noise levels enables installation in false ceiling application and
makes them suitable for the widest range of installations where noise levels are one of the main requirements.
Dims: - 273mm x 388mm x 395mm
-

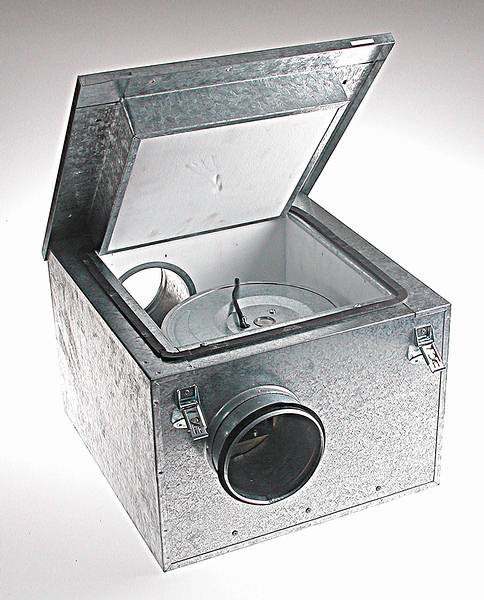

Casing
Made of galvanised steel sheet and provided with high density non degradable acoustic lining. - They are fitted with circular inlet and outlet spigots with integral seals.
- One door fitted with two quick release catches gives easy access to the fan.
-
Fans
Low pressure direct drive centrifugal fans with forward curved galvanised steel impeller, fitted with speed controllable single-phase enclosed* motor 230 V 50 Hz. - Four support feet are supplied with the fan for ease of installation.
Fan size: - 140 / 059
Speed (RPM): - 2350
Motor power (W): - 100
Current at 220 V (A): - 0,80
Duty at free discharge (m3/h): - 390
Sound pressure level
(36dB (A) at 1,5 m):
Outlet: - 59.5
Inlet: - 39.5
Radiated: - 40
Weight (kg): - 18
Speed (RPM): - 2350
Motor power (W): - 100
Current at 220 V (A): - 0,80
Duty at free discharge (m3/h): - 390
Sound pressure level
(36dB (A) at 1,5 m):
Outlet: - 59.5
Inlet: - 39.5
Radiated: - 40
Weight (kg): - 18
| Extended range: - Please allow 1 or 2 days for stock transfer |
