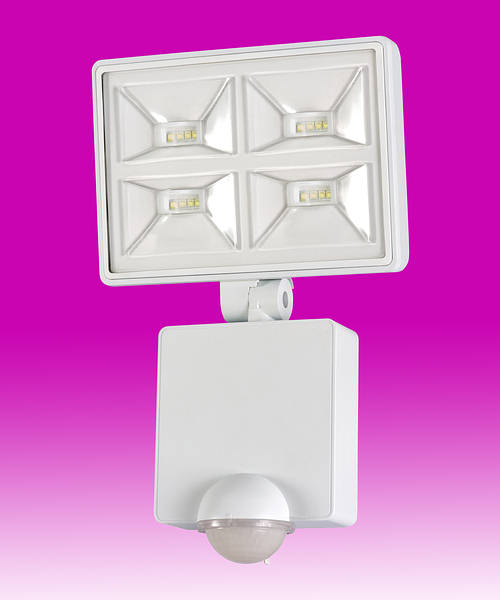

32w LED Energy Saver Floodlight
c/w PIR - White
Introducing the new 32W LED PIR Floodlight from Timeguard,
a welcome addition to our popular range of LED outdoor lighting.
Instantly bright like halogens, this slim design range is equivalent to 2000 Lumens (approx. 230W halogen)
with only 14% of the running costs.
A powerful and energy saving alternative to halogen lighting with multiple features and benefits.
Powerful 32W (4x 8W) LED Energy Saving Floodlight equivalent to 400w incandescent lighting with only 14% of the running costs.*
- 90° pan left and 90° pan right light aiming adjustment and 55° tilt adjustment.
- Light ON times adjustment 5 seconds to 10 minutes.
- Optional mode settings Dusk to Dawn Photocell mode and Test mode.
- 180° PIR detection angle within adjustable 360° range and up to 12m detection range.
- Lux (light level) adjustment Day to Night (2 to 200 Lux dusk to dawnON when at max).
- Can link with up to 5 slave 32W LED Floodlight codes SM400FLWH and SM400FLB for matching installations.
- Ideal for both indoor and outdoor installations.
- IP55 weatherproof rating.
- Exit ON feature.
Operating Voltage: 230V AC
- Lamp Type: 4x 8W LED
- Maximum Light Load (W): 230W
- Weatherproof Rating: IP55
- Detection Range (Max) Metres : 10
- Angle of Detection
180° PIR detector (pan only) within adjustable 360° range
- Light On Time After last detection (Adjustable)
- 5 Seconds (Min), 10 Minutes (Max)
- Permanent ON Facility: (Electronic)
- Adjustable Light Level (LUX) Control: 2 to 200 Lux
- Conforms to Directives: 73/23/EEC, 89/336/EEC
- Overall Dimensions (mm)
Height 292, Width 179, Depth 86
