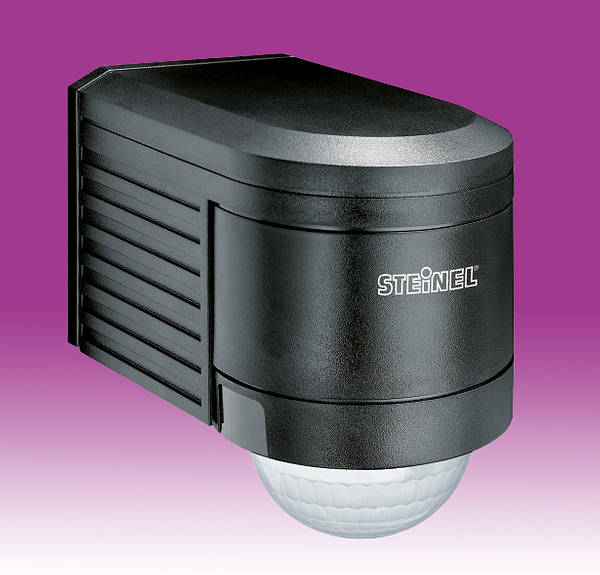

Name: IS-FS300 Wireless Sensor - Black - IP 54
Brand: Steinel (UK) Ltd
SKU: STFS300B
Price: 70.80 GBP
Availability: Discontinued

IS-FS300 Wireless Sensor - Black - IP 54

Product Code: ST FS300B

4007841704711

704711

Loading …

Dimensions (h x w x d)
85 x 60 x 95 mm

9v battery not included

EACH	2+
£59.00	£57.00

EACH	2+
£70.80	£68.40

Quantity

Discontinued

Description

Steinel IS-FS300
Wireless Sensor - Black - IP 54

Wireless freedom is now even more reliable and flexible:
The new STEINEL Impulser series combines cutting-edge sensor technology,
intelligent processor control and reliable 868.3 MHz wireless communication
to create an innovative solution for exacting surveillance applications.

The system's hi-tech components can be combined or grouped in any way
to provide the perfect solution for your very own particular needs.

The battery-operated IS-FS 300 infrared sensor is the ideal solution
for integrating areas in the system that are not served by mains power.

Quick and easy to install without laying cables
Sophisticated combination options for transmitting and receiving
Transmitters and receivers can be configured in any chosen way
Reliable wireless communication at 868.3 MHz
Sensors, outdoor and indoor lights can be interconnected in any way you choose
Safety and security
Light switches on automatically to deter uninvited guests
Guards and lights up areas in the home, businesses, industry and public places.
Convenience
Lights conveniently switched ”ON” by remote control
State-of-the-art 868.3-MHz wireless technology

Operating voltage / mains connection
9 V block battery* (alkaline) (min. life 12 months.)**
** depending on triggering frequency (frequency of motion detection)
Detection reach - 12 m max., electrically stabilised
Sensor system
10 detection levels,
720 switching zones
Angle of coverage
300° horizontally,
180° vertically
Sensor turning range - ± 80°
Transmitter range
Up to 100 m with uninterrupted line of vision dia. or 30 m indoors
Time setting - 1 min. - 15 min.
Twilight setting - 2 – 2000 lux
Enclosure - IP 54
Operating frequency - 863,3 MHz (ISM-Band)
Transmitter power - less than 1000 µW
Programming
5 way DIP switch
32 possible addresses per channel
Number of receivers - Any
