Width: 114mm.
Height: 74mm.
Depth: 128mm.
SensIQ Evo PIR
Remote control and corner wall mount bracket included.

The evolution of perfection.

The sensIQ S is just as perfect as its larger role model.

For indoors and outdoors, ideal for building entrances,
loading bays, for mounting heights of up to 5 m, quadruple
sensor system for optimum surveillance over 3x100° coverage
angle, 20 m reach (tangential), reach setting to the
accuracy of a metre in 3 independent directions.

The evolution of perfection. The reference in compact design.

Handsome addition! The sensIQ S is just as perfect in form and
functional diversity as its larger role model. A look that architects like.

This designer motion detector was developed specifically for wall mounting though.

Being altogether more compact that its big brother, the sensIQ S nestles up
against the facade, perfectly harmonising with modern, purist architecture.

Its inner values are spectacular too because it comes with the
same highly intelligent features and setting options as the sensIQ.
  • Model Movement sensor
  • Sensor type - Passive infrared
  • Accessories includes corner wall mount and remote control RC9
  • Detection angle 300° with 180° angle of aperture

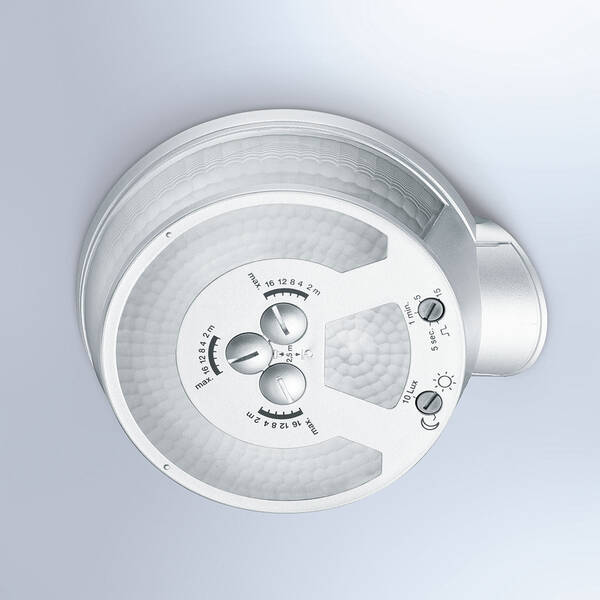

  • Reach Adjustable in 3 directions via control dial, (2 – 20 m max. tangential, temperature stabilised)
  • Reach (2 - 20 m max. tangential, temperature-stabilised) adjustable in 3 directions via control dial
  • Application indoors and outdoors
  • Installation - Wall/Corner
  • Recommended installation height - 2-5 m.
  • Degree of protection (IP) IP54
  • Temperature -20-50 °C.
  • Voltage 100 - 240 V, 50/60 Hz (2.5 mm² max.)
  • max. output (resistive load, all-purpose lamp) 1200 W max. at 120v / 2000W max. at 230 V
    max. output (uncorrected, inductive, cos f = 0.5, e.g.
    fluorescent lamps) 1000 VA max., 230v 500VA max., 120 V
  • Capability of masking out individual segments - Yes
  • Sensor system - 4 sensors, 6 levels for long-distance detection and 5 for sneak-by guard, 1360 switching zones
  • Teach-function for response value luminosity - Yes
  • Time setting 5 sec. - 15 min. Pulse mode (approx. 2 sec.)
  • Manual override selectable, 4h
  • Permanently 'OFF' selectable
  • Response value luminosity 2-2000 lx
