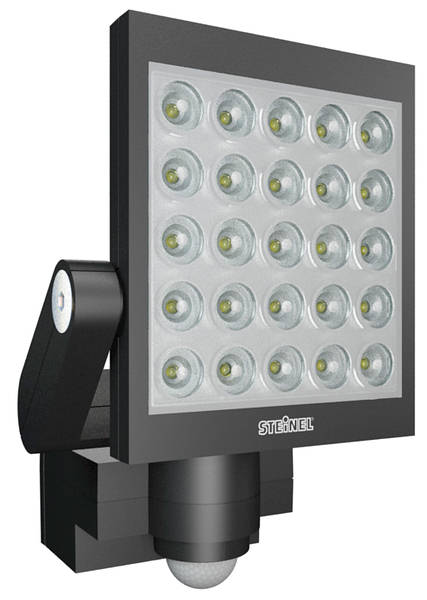

XLed 25 Sensor Floodlight - Black
Product Code: ST XLED25B
4007841654719
654719
Loading …
Enclosure - IP 54
Dimensions (h x w x d) -
305 x 200 x 200 mm
Optional - Ground Spike
Fitting & PIR
3 year Guarantee
Light output approx
300w Halogen
Steinel XLed 25
LED Sensor Floodlight - Black
LED Sensor Floodlight - Black
Sensor-controlled halogen light gives you safety and security, but doesn't completely meet today's demands on energy efficiency. Low-energy bulbs don't provide an alternative because their light doesn't shine brightly straight away.
XLed floodlights from STEINEL feature a new flood-light concept that provides an ideal combination of sensor and LED light technology; instant, fully bright light from electronically controlled LED's using only about 1/3 of the energy consumed by conventional halogen floodlights.
This turns a practical product into a real stunner.
Unique flexibility for a wealth of different uses.
Creating this outstanding lighting solution demanded a completely new approach.
From the aspect of control, cooling and design. With head-turning looks, it uses innovative high-end 3w LED's and a specially developed cooling system. But the really clever part is found in the microprocessor control electronics.
The result is nothing short of amazing: radiantly bright light all around the building at minimum energy consumption. Plus a fascinating lighting effect with unique directional flexibility.
- XLed with 25 LED's aluminium flat design fitting.
- Approx. 60w power consumption.
- Integrated motion detector providing 240° all-round coverage over a reach of 12 m.
- Housing tilts through: 200°
Housing swivels through: 270° - Integrated electronic ballasts.
- ATC – Active-Thermo-Control.
- External switching output capability for creating interconnected systems.
- 10% basic brightness mode (always 10% light at night or 10 minute "OFF" delay after responding).
- Can be installed under porches as no need to allow for any metre safety distance.
- Life of LED's: up to 50,000 hours.
- Simple, 2-stage assembly.
- 2/3 energy saving.
- Long llife LED's.
- *Intelligent Energy Saving
- Voltage - 230v - 240v, 50 Hz
- Energy Consumed: 60w
- Light output approx: 300w Halogen
- Additional switching capacity
800w max. (resistive load,e.g. filament bulb)
400w max. (Inductive e.g. fluorescent lamps)
400w max. (electronic ballasts, capacitive, e.g. low-energy bulbs, 4 lamps max.) - Life of LEDs: - up to 50,000 hours
(at 3 hours/day, approx. 45 years) - Angle of coverage - 240° with sneak-by guard
- Reach - 12 m max.
- Sensor system 9 detection levels,
304 switching zones - Time setting - 5 sec. – 15 min.
- Twilight setting - 2 – 2000 lux
- Brightness control
- Selectable
10% basic brightness mode (10-minute OFF delay at 10% brightness after time setting elapses) - Manual override - 4 hr
- Special features
Housing tilts through: 200°
Housing swivels through: 270°
Enclosure - IP 54
Dimensions (h x w x d) -
305 x 200 x 200 mm
Optional - Ground Spike
Fitting & PIR
3 year Guarantee
Light output approx
300w Halogen
Technical:Installation / Instructions - XLED |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
ST XLED25B
XLed 25 Sensor Floodlight - Black |
