XLed 25 Sensor Floodlight - White - Discontinued

Please try PIR Controlled Lighting for alternative products.

XLed 25 Sensor Floodlight - White4007841654818654818

Loading …

Enclosure - IP 54

Dimensions (h x w x d) -
305 x 200 x 200 mm

Optional - Ground Spike

Fitting & PIR
3 year Guarantee

Light output approx
300w Halogen

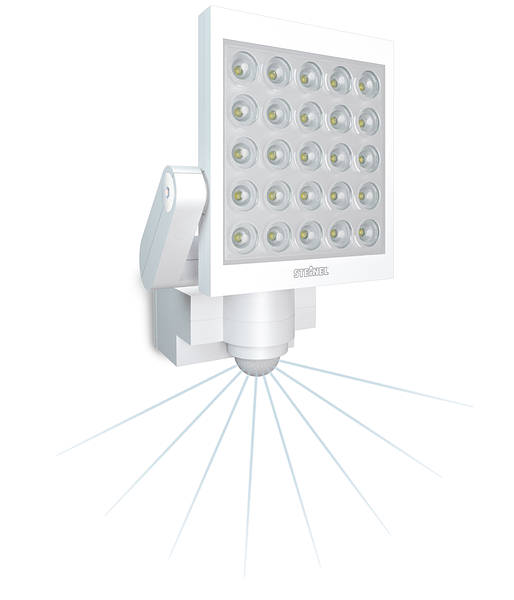

Steinel XLed 25
LED Sensor Floodlight - White
Instant light as bright as day with high energy efficiency in keeping with the times.
Sensor-controlled halogen light gives you safety and security, but doesn't completely meet today's demands on energy efficiency. Low-energy bulbs don't provide an alternative because their light doesn't shine brightly straight away.
XLed floodlights from STEINEL feature a new flood-light concept that provides an ideal combination of sensor and LED light technology; instant, fully bright light from electronically controlled LED's using only about 1/3 of the energy consumed by conventional halogen floodlights.
This turns a practical product into a real stunner.

Unique flexibility for a wealth of different uses.
Creating this outstanding lighting solution demanded a completely new approach.
From the aspect of control, cooling and design. With head-turning looks, it uses innovative high-end 3w LED's and a specially developed cooling system. But the really clever part is found in the microprocessor control electronics.
The result is nothing short of amazing: radiantly bright light all around the building at minimum energy consumption. Plus a fascinating lighting effect with unique directional flexibility.
  • XLed with 25 LED's aluminium flat design fitting.
  • Approx. 60w power consumption.
  • Integrated motion detector providing 240° all-round coverage over a reach of 12 m.
  • Housing tilts through: 200°
    Housing swivels through: 270°
  • Integrated electronic ballasts.
  • ATC – Active-Thermo-Control.
  • External switching output capability for creating interconnected systems.
  • 10% basic brightness mode (always 10% light at night or 10 minute "OFF" delay after responding).
  • Can be installed under porches as no need to allow for any metre safety distance.
  • Life of LED's: up to 50,000 hours.
  • Simple, 2-stage assembly.
  • 2/3 energy saving.
  • Long llife LED's.
  • *Intelligent Energy Saving
  • Voltage - 230v - 240v, 50 Hz
  • Energy Consumed: 60w
  • Light output approx: 300w Halogen
  • Additional switching capacity
    800w max. (resistive load,e.g. filament bulb)
    400w max. (Inductive e.g. fluorescent lamps)
    400w max. (electronic ballasts, capacitive, e.g. low-energy bulbs, 4 lamps max.)
  • Life of LEDs: - up to 50,000 hours
    (at 3 hours/day, approx. 45 years)
  • Angle of coverage - 240° with sneak-by guard
  • Reach - 12 m max.
  • Sensor system 9 detection levels,
    304 switching zones
  • Time setting - 5 sec. – 15 min.
  • Twilight setting - 2 – 2000 lux
  • Brightness control
  • Selectable
    10% basic brightness mode (10-minute OFF delay at 10% brightness after time setting elapses)
  • Manual override - 4 hr
  • Special features
    Housing tilts through: 200°
    Housing swivels through: 270°


Installation / Instructions - XLED
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo ST XLED25W XLed 25 Sensor Floodlight - White
