Solar Connector Type 4 - (MC4 Compatible) - Female5060082543128SLC4F

Solar Connector
Type 4 - (MC4 Compatible) - Female
Can be installed on any conventional solar module junction box, or solar combiner box
interconnection or added to solar modules with existing MC4/Type 4 connectors for extended distances.
Greatly speeds up installation of solar array.

With excellent ageing resistance and UV endurance, it can be used in harsh environments.
The cable connects by means of a rivet and lock.
It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.

Male connectors are fully labelled "Do not disconnect under load"
  • Rated Voltage: 1000V DC
  • Rated Current: 20A
  • Application Class: Class A
  • Protection Class: Class II
  • Insulation Material: PPO, black
  • Protection degree: IP65
  • Contact material: Copper, tin plated
  • Operating Temperature: -40O°C TO +85O°C
  • Cable Range: - 2.5, 4, & 6mm²
  • Standard: - DIN V VDE V 0126-5/05.08
Order Code
Price (ex VAT)
Price (inc VAT)

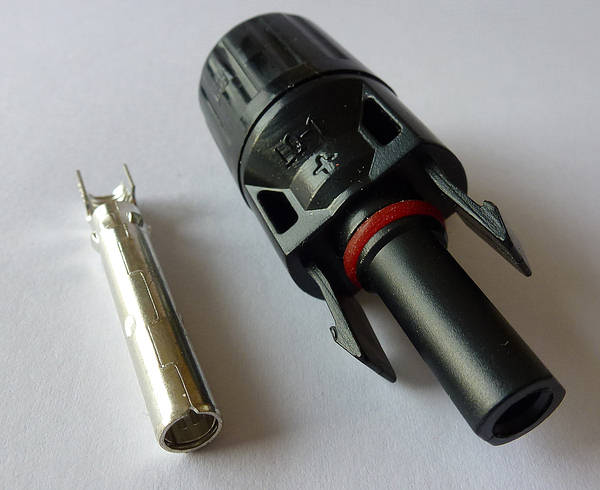

product photo


Solar Connector Type 4 - (MC4 Compatible) - Female
