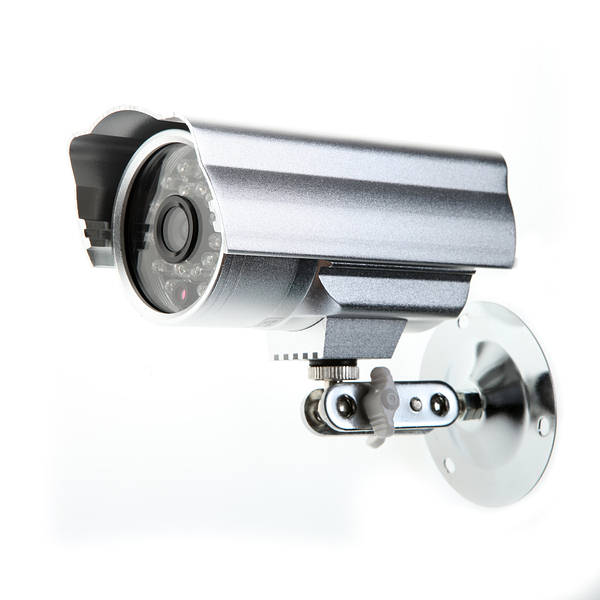

1/3" Sony 480TVL IP65 20M IR Bullet Style Camera c/w 3.6mm Lens
Product Code: TS CAMB04
CAM-BU04
Loading …
Width: 195mm
Depth: 105mm
Height: 100mm
1/3" Sony 480TVL IP65
20M IR Bullet Style Camera
c/w 3.6mm Lens
20M IR Bullet Style Camera
c/w 3.6mm Lens
This camera is fitted with a high quality 1/3" Sony Super HAD CCD,
and has a horizontal resolution of 480TVL's which produces a good quality image.
As well as being a weatherproof camera, the CAM-BU04 has a 3 axis
design which allows the camera to be both wall and ceiling mounted as standard.
The CAM-BU04 is also fitted with 24 infra red LED's and a photocell,
so as when the surrounding light levels drop below 0.5 lux the camera will automatically
turn on its built in IR LED's and switch from its standard colour images to black & white.
This allows the camera to continue to work in complete darkness, up to a maximum of 20M.
Unlike some IR cameras the CAM-BU04 is fitted with a dual glass, hoop/ring design
which prevents any bleed from the LED's affecting the cameras view.
This CAM-BU04 is also fitted with a fixed 3.6mm wide angle lens, which will give you a viewing angle of approx. 72°
Finally the CAM-BU04 requires a 12vDC power supply,
and is supplied with a free of charge 2 core DC power connector.
Overall, the CAM-BU04 is an ideal choice when you require a high quality "day / night" CCTV camera
for use in most domestic and small commercial installations.
- IP65 rated external or internal use IR day/night camera
- High quality 1/3" SONY Super HAD CCD
- Horizontal resolution of 480TVL’s
- Fixed 3.6mm lens
- Colour images during the day, B+W images at night
- 24 x IR LED's giving a maximum of 20M IR Coverage
- Dual glass / hoop design (prevents IR glare)
- 12v DC 350mA power requirements
- Supplied with a 2 core power connector
- 2 year warranty (T & C’s apply)
Width: 195mm
Depth: 105mm
Height: 100mm
