1/3" Sony 420TVL IP65 30M IR Bullet Style Camera c/w 3.5 - 9mm Lens - Discontinued

Please try CCTV & Door Entry Systems for alternative products.

1/3" Sony 420TVL IP65 30M IR Bullet Style Camera c/w 3.5 - 9mm Lens CAM-BU05

Guarantee: 2 Year

Width: 195mm
Depth: 205mm
Height: 110mm
1/3" Sony 420TVL IP65
30M IR Bullet Style Camera
c/w 3.5 - 9mm Lens

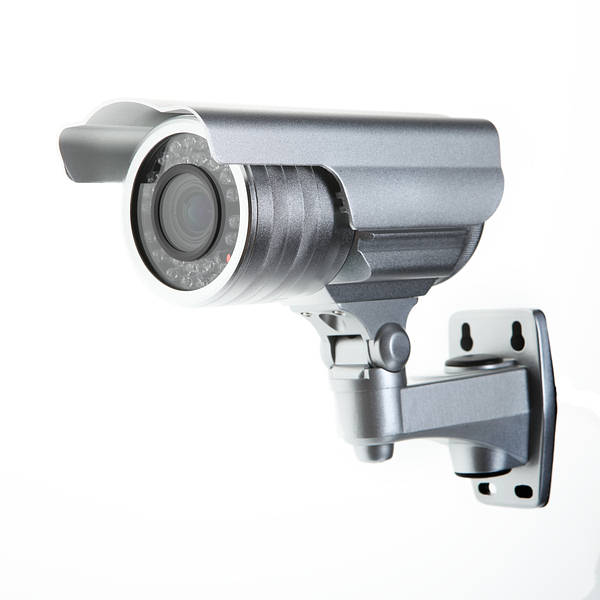

The CAM-BU05 is an IP65 rated internal or external use, medium resolution, IR day/night bullet style camera.
This camera is fitted with a high quality 1/3" Sony CCD,
and has a horizontal resolution of 420TVL's which produces a good quality image.

As well as being a weatherproof camera,
the CAM-BU05 has a fully, cable managed bracket and a fully adjustable sun shield.
This camera also has the added benefit of allowing the installer to switch on/off the BLC (back light compensation), EE (electronic exposure), AGC (auto gain control) and AWB (auto white balance).
This allows the installer to adjust the image settings, which can be very useful when cameras
are being installed in unfriendly light conditions.
These switches can be found behind a waterproof screw on plate at the rear of the camera.
This allows easy access for the installer, without loosing any of the cameras protective qualities.

The CAM-BU05 is also fitted with 36 infra red LED's and a photocell, so as when the surrounding light levels drop below 0.5 lux the camera will automatically turn on its built in IR LED's and switch from its standard colour images to black & white. This allows the camera to continue to work in complete darkness, up to a maximum of 30M. Unlike some IR cameras the CAM-BU05 is fitted with a dual glass, hoop/ring design which prevents any bleed from the LED's affecting the cameras view.

This CAM-BU05 is also fitted with a manual varifocal 3.5 - 9.0mm lens,
which allows you to adjust the lens to obtain the perfect image.
Like the image setting switches, the adjustment screws for this cameras can be found behind the rear screw on plate. This, unlike some cameras, means that the adjustment screws are not open to the elements,
and will therefore not rust, over a harsh British winter.
A free of charge lens adjustment tool is supplied with every CAM-BU05

Finally the CAM-BU05 requires a 12vDC power supply,
and is supplied with a free of charge 2 core DC power connector.
Overall, the CAM-BU05 is an ideal choice when you require a good quality,
varifocal "day / night" CCTV camera for use in most domestic and commercial installations.
  • IP65 rated external or internal use IR day/night camera
  • High quality 1/3" SONY CCD
  • Horizontal resolution of 420TVL’s
  • Varifocal 3.5 - 9.0mm lens
  • External lens adjustment behind rear cover plate
  • Supplied with a lens adjustment tool
  • Colour images during the day, B+W images at night
  • 36 x IR LED's giving a maximum of 30M IR Coverage
  • Dual glass / hoop design (prevents IR glare)
  • BLC, EE, AGC, AWB on / off adjustable
  • Fully cable managed bracket and adjustable sunshield
  • 12v DC 450mA power requirements
  • Supplied with a 2 core power connector
  • 2 year warranty (T & C’s apply)

Technical:

Lens Size Calculator IP Rating Chart

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

TS CAMB05

1/3" Sony 420TVL IP65 30M IR Bullet Style Camera c/w 3.5 - 9mm Lens

EA

£34.95

EA

£41.94

Discontinued
