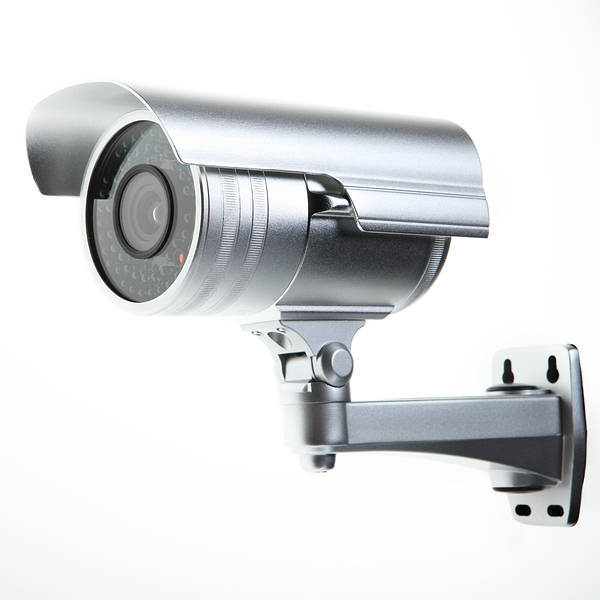

1/3" Sony 540TVL IP65 50M IR Bullet Style Camera c/w 6 - 15mm Lens
Product Code: TS CAMB13
CAM-BU13
Loading …
Width: 270mm
Depth: 220mm
Height: 130mm
1/3" Sony 540TVL IP65
50M IR Bullet Style Camera
c/w 6 - 15mm Lens
50M IR Bullet Style Camera
c/w 6 - 15mm Lens
This camera is fitted with a high quality 1/3" Sony Super HAD CCD,
and has a horizontal resolution of 540TVL's which produces an excellent quality image.
As well as being a weatherproof camera,
the CAM-BU13 has a fully, cable managed bracket and a fully adjustable sun shield.
This camera also has the added benefit of allowing the installer to switch on/off the BLC (back light compensation), EE (electronic exposure), AGC (auto gain control) and AWB (auto white balance).
This allows the installer to adjust the image settings, which can be very useful
when cameras are being installed in unfriendly light conditions.
These switches can be found behind a waterproof screw on plate at the rear of the camera.
This allows easy access for the installer, without loosing any of the cameras protective qualities.
The CAM-BU13 is also fitted with 54 infra red LED's and a photocell,
so as when the surrounding light levels drop below 0.5 lux the camera will automatically
turn on its built in IR LED's and switch from its standard colour images to black & white.
This allows the camera to continue to work in complete darkness, up to a maximum of 50M.
Unlike some IR cameras the CAM-BU13 is fitted with a dual glass, hoop/ring design
which prevents any bleed from the LED's affecting the cameras view.
This CAM-BU13 is also fitted with a manual varifocal 6.0 - 15.0mm lens,
which allows you to adjust the lens to obtain the perfect image.
Like the image setting switches, the adjustment screws for this camera can be found
behind the rear screw on plate.
This, unlike some cameras, means that the adjustment screws are not open to the elements,
and will therefore not rust, over a harsh British winter.
A free of charge lens adjustment tool is supplied with every CAM-BU13
Finally the CAM-BU13 requires a 12vDC power supply,
and is supplied with a free of charge 2 core DC power connector.
Overall, the CAM-BU13 is an ideal choice when you require a excellent quality,
varifocal "day / night" CCTV camera for use in most commercial installations.
- IP65 rated external or internal use IR day/night camera
- High quality 1/3" SONY Super HAD CCD
- Horizontal resolution of 540TVL’s
- Varifocal 6.0 - 15.0mm lens
- External lens adjustment behind rear cover plate
- Supplied with a lens adjustment tool
- Colour images during the day, B+W images at night
- 54 x IR LED's giving a maximum of 50M IR Coverage
- Dual glass / hoop design (prevents IR glare)
- BLC, EE, AGC, AWB on / off adjustable
- Fully cable managed bracket and adjustable sunshield
- 12v DC 540mA power requirements
- Supplied with a 2 core power connector
- 2 year warranty (T & C’s apply)
Width: 270mm
Depth: 220mm
Height: 130mm
